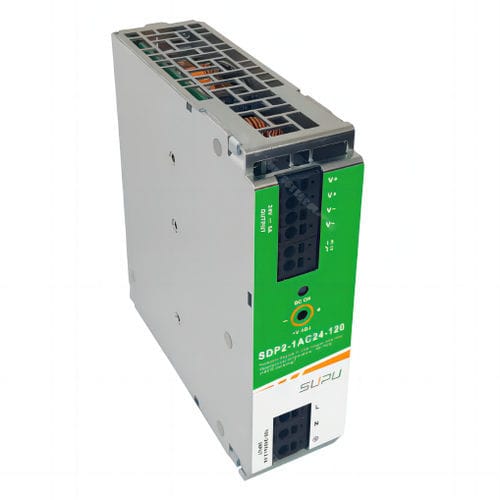

DIN rail power supply SDP2-1AC24-120
DCsingle-phaseIP20

DIN rail power supply - SDP2-1AC24-120 - Ningbo SUPU Electronics Co., Ltd. - DC / single-phase / IP20
DIN rail power supply - SDP2-1AC24-120 - Ningbo SUPU Electronics Co., Ltd. - DC / single-phase / IP20
DIN rail power supply - SDP2-1AC24-120 - Ningbo SUPU Electronics Co., Ltd. - DC / single-phase / IP20 - image - 2
Add to favorites
Compare this product

Characteristics

Mounting / format
DIN rail
Type
DC
Network
single-phase
Protection class
IP20
Input voltage

Min.: 264 V

Max.: 370 V

Output voltage

24 V

Current

2.2 A

Power

120 W

Output frequency

63 Hz

Description

Single phase full range, 24V/120W, DC OK remote monitoring, DIN 35 rail mounting Parameters Protection Level IP20 Operating temperature range -40~+70℃ Terminal block MC-TC5.0H2P-BK MC-TC5.0H3P-BK-0001-RZ MC-TC5.0H4P-BK-0001 DC OK Yes Dimensions(mm) 127 * 115* 35 Technical data Nominal input AC、DC Efficiency 88% Ripple noise 150mVp-p Peak load capacity 150% Withstand voltage I/P-O/P：3000Vac.60S,≤10mA I/P-PE：1500Vac.60S,≤10mA O/P-PE：700VDC.60S,≤10mA Working altitude ≤3000m
