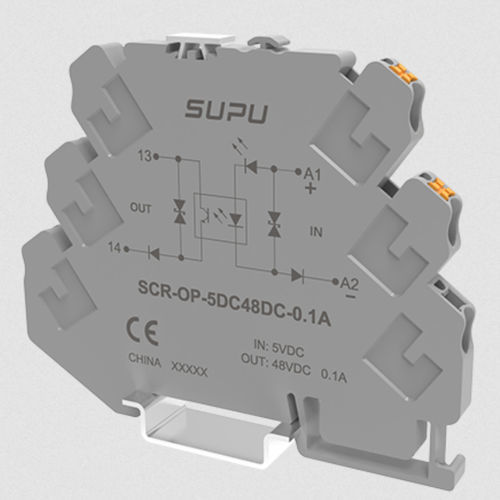

DC solid state relay SCR-OP-5DC48DC-0.1AACDIN railcoupling
Add to favorites
Compare this product
Characteristics
- Control voltage
- DC, AC
- Mounting
- DIN rail
- Function
- coupling
- Other characteristics
- IEC
- Switching current
Max.: 50 mA
Min.: 15 mA
Description
Optocoupler relay IN:5VDC OUT:48VDC-0.1A
Parameters
Contact plating
Tin
Product family
SCR Series
Certification in acc. with standard
EN61947-5-1:2017/AC:2020
Mounting type
DIN 35mm rail mounting
Assembly note
No spacing arrangement
Mounting position
optional
Connection type
NPN / PNP
Wire Range
26-12/0.2-2.5mm²
Impulse withstand voltage
4KV
厚x宽x高 (mm)
6.2x90x72
Plastic materials
PA66
Technical data
IEC Rated Current
15~50mA
Protective circuit
Anti-reverse protection, TVS surge protection
Indicator light
Emerald (LED)
Maximum switching frequency
500HZ
Input polarity
Monopole
Rated switching voltage
5~48VDC
Rated switching current
100mA
Maximum switching voltage
48VDC
Continuing current
100mA
Voltage dips
<0.1V
Load type
DC
Load protection circuit
DC
