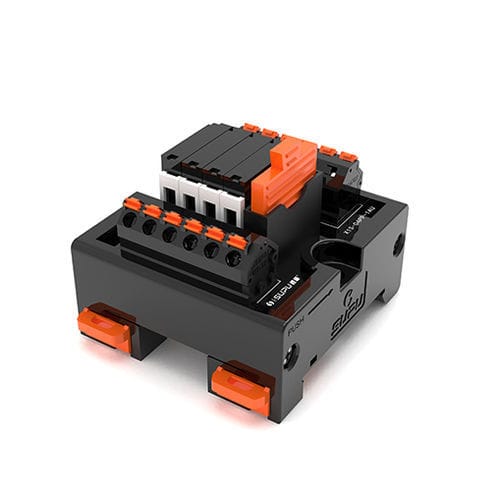

DC relay module X1S-04PP-1AUACswitchingDIN rail
Add to favorites
Compare this product
Characteristics
- Type
- switching, DC, AC
- Mounting
- DIN rail
- Load current
5 A
- Load voltage
30 V, 240 V
Description
50mm base small relay, 4 MC-DTP/TP terminal input and output, 1 set of normally open contacts, high and low level switching input.
Parameters
Number of connections
4
Protection Level
IP20
Operating temperature range
-20℃-+70℃
Mounting Type
DIN rail mounting/screw mounting
Technical data
Overvoltage category
Ⅱ
Degree of pollution
2
Stripping length
9-10mm
Cable cross section (AWG)
500VAC/1min
Insulation Resistance
500MΩ
Wire Range
28-16AWG
Coil Current
4.6mA
Load Current
5A
Coil Voltage
24V DC
Catalogs
INTERFACE MODULE
14 Pages
