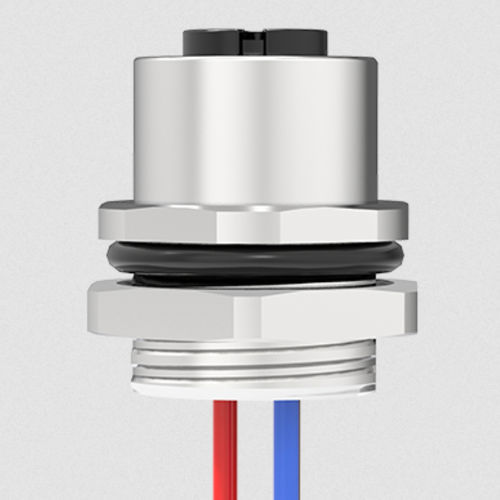

Panel-mount connector M12A03C-FFHR-UC0.5datacircularM12 A-coded
Add to favorites
Compare this product
Characteristics
- Type
- data
- Shape
- circular
- Size
- M12 A-coded
- Electrical characteristics
- insulation, 3-pole
- Material
- PA, nickel, zinc, NBR
- Product applications
- plate , front panel
- Domain
- sealing
- Protection class
- IP67
- Other characteristics
- IEC, panel-mount, M12x1, PVC-insulated
- Impedance
Max.: 100 Ohm
Min.: 10 Ohm
- Primary current
4 A
- Voltage
250 V
- Operating temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
A-coding, 3 pole panel mount with eyelet connector with 0.5m PVC e-cable, locking plate nut M16*1.5, front panel mount
Parameters
SUPU ID
M12
Number of connections
3
Protection Level
IP67
Operating temperature range
-40~+85℃
Mounting Type
Front Panel Mount
Thread type
M12X1.0
Category
Female
Coding
A
Connection method
/
Mechanical endurance
100
Standards
IEC61076-2-101
Technical data
Degree of pollution
3
Insulation Resistance
≥100MΩ
Contact resistance
＜10mΩ
Contact/surface material
CuSn/Ni/Au
Contact carrier material
PA
Screw/nut material
CuZn
Sealing material
NBR
Cable length
0.5
