- Ningbo SUPU Electronics Co., Ltd.

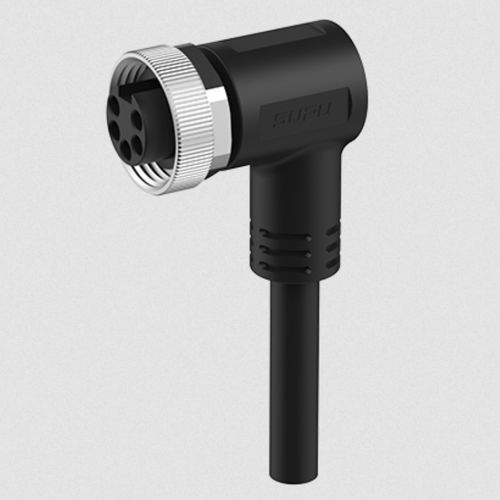

Data connector M7-8U05C-FMSRA-UC001BHcircularfemalescrew
Add to favorites
Compare this product
Characteristics
- Type
- data
- Shape
- circular
- Connection type
- female, screw
- Electrical characteristics
- DC
- Material
- PVC, TPU, NBR
- Product applications
- for sensors, nut, for actuators
- Domain
- for harsh environments, sealing
- Protection class
- IP67
- Other characteristics
- with cable
- Impedance
Max.: 100 Ohm
Min.: 10 Ohm
- Primary current
9 A
- Voltage
300 V
- Operating temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
7/8, 5 pole female angled connector, unshielded, with 1 meter PVC cable
Parameters
Number of connections
5
Thread type
7/8-16 UN-2A
Category
Female
Coding
/
Connection method
Moulded Type
Shielded
NO
Mechanical endurance
≥100
Standards
/
Technical data
Contact/surface material
CuZn/Ni/Au
Contact carrier material
TPU
Screw/nut material
CuZn
Sealing material
NBR
Cable length
1
Outer sheath, material
PVC
External sheath, color
Black
Catalogs
No catalogs are available for this product.
See all of Ningbo SUPU Electronics Co., Ltd.‘s catalogsOther Ningbo SUPU Electronics Co., Ltd. products
Circular connectors
