- Ningbo SUPU Electronics Co., Ltd.

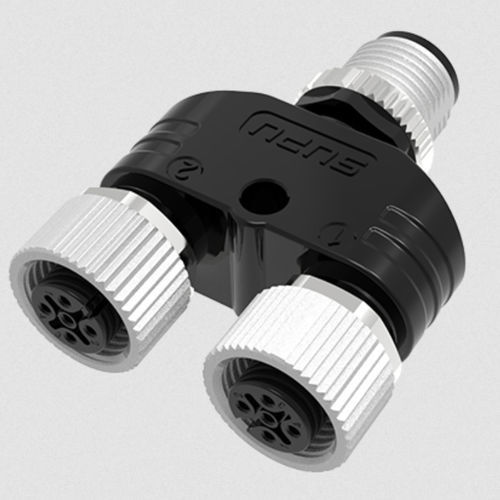

Signal distributor M12A5M-YU-12A5F-12A5FIP67
Add to favorites
Compare this product
Characteristics
- Options
- signal
- Protection level
- IP67
Description
Number of connections
5
Operating temperature range
-40~85℃
Thread type
M12
Category
Pin/Hole
Coding
A-coding
Shielded
No
Mechanical endurance
≥100
Standards
IEC61076-2-104
Technical data
IEC Rated Current
4A
IEC Rated Voltage
60V AC/DC
Degree of pollution
3
Insulation Resistance
≥100MΩ
Contact resistance
＜10mΩ
Contact/surface material
CuSn/Ni/Au
Contact carrier material
TPU
Screw/nut material
Zinc
Sealing material
NBR
