Energy storage connector ESF-SU250A19B
electrical power supplyscrewpower

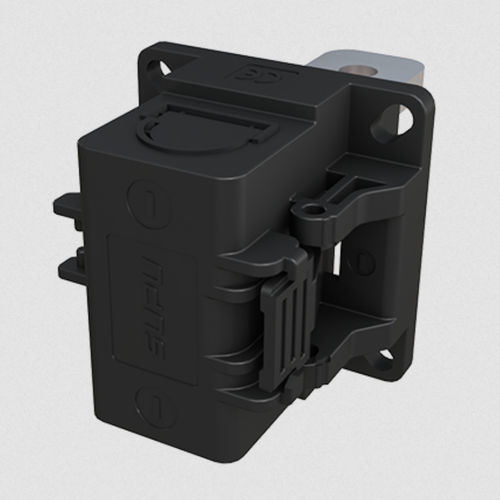

Energy storage connector - ESF-SU250A19B - Ningbo SUPU Electronics Co., Ltd. - electrical power supply / screw / power
Energy storage connector - ESF-SU250A19B - Ningbo SUPU Electronics Co., Ltd. - electrical power supply / screw / power
Energy storage connector - ESF-SU250A19B - Ningbo SUPU Electronics Co., Ltd. - electrical power supply / screw / power - image - 2
Add to favorites
Compare this product

Characteristics

Type
electrical power supply
Connection type
screw
Electrical characteristics
power, insulation
Material
PA, copper alloy
Product applications
energy storage
Protection class
IP20
Other characteristics
IEC, flame-retardant
Primary current

250 A

Voltage

1,500 V

Operating temperature

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Description

Nominal operating voltage 1500V DC,Rated current 250A,Color:Black,wiring method: screw Parameters Connection method Screw thread Operating temperature range -40℃～125℃ Insulation material PA Insulation material group Ⅲ Contact material Copper alloy Contact plating Ni,Plated Technical data Overvoltage category Ⅲ Degree of pollution 3 Rated impulse voltage 10KV Conductor cross section rigid 70mm²（ AWG2/0） Conductor cross section flexible 70mm²（ AWG2/0） Rated cross section 70mm²（ AWG2/0） Can connect copper bar specifications 18*4mm and more
