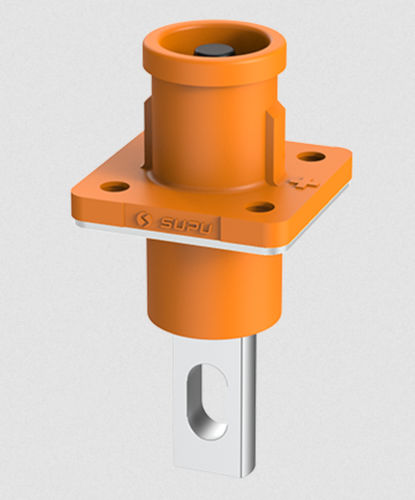

Electrical power supply connector ESF-RS120A25YLPins Headerscrewinsulation
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Format
- Pins Header
- Connection type
- screw
- Electrical characteristics
- insulation
- Material
- copper
- Product applications
- energy storage
- Protection class
- IP67
- Primary current
120 A
- Voltage
1,500 V
- Operating temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)
Description
Connectors suitable for energy storage modules: Color: Orange Wire cross-section: 16mm² Rated voltage: 1500V DC Rated current: 100A Connection method: screw Contact type: Pin
Parameters
Number of connections
1
Connection method
Screw thread
Operating temperature range
-40℃～125℃
Insulation material
PA
Insulation material group
Ⅲ
Contact material
Copper alloy
Contact plating
Ag,Plated
Insertion/withdrawal cycles
100
Insertion force
≤75N
Withdrawal force
≥10N
Technical data
Overvoltage category
Ⅲ
Degree of pollution
3
Rated impulse voltage
12.3KV
UL Rated Current
120A
UL Rated Voltage
1500V
Stripping length
/
Rated cross section
25mm²（ AWG4）
Rated cross section(AWG)
25mm²（ AWG4）
External cable diameter
/
Catalogs
No catalogs are available for this product.
