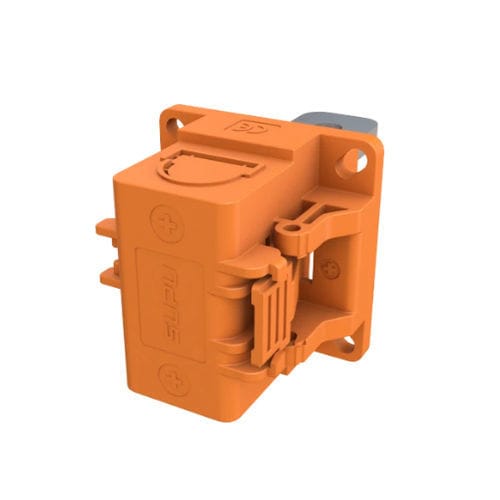

Energy storage connector ESF-SU250A19Yelectrical power supplyscrewPA
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Connection type
- screw
- Material
- PA, copper alloy
- Product applications
- cable, energy storage, busbar
- Protection class
- IP20
- Other characteristics
- IEC, flame-retardant
- Primary current
250 A
- Voltage
1,500 V
- Operating temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)
Description
Nominal operating voltage 1500V DC,Rated current 250A,Color:Orange,wiring method: screw
Parameters
Connection method
Screw thread
Protection Level
IP20
Operating temperature range
-40℃～125℃
Insulation material
PA
Insulation material group
Ⅲ
Contact material
Copper alloy
Contact plating
Ni,Plated
Technical data
Overvoltage category
Ⅲ
Degree of pollution
3
Rated impulse voltage
10KV
Conductor cross section rigid
70mm²（ AWG2/0）
Conductor cross section flexible
70mm²（ AWG2/0）
Rated cross section
70mm²（ AWG2/0）
Can connect copper bar specifications
18*4mm and more
