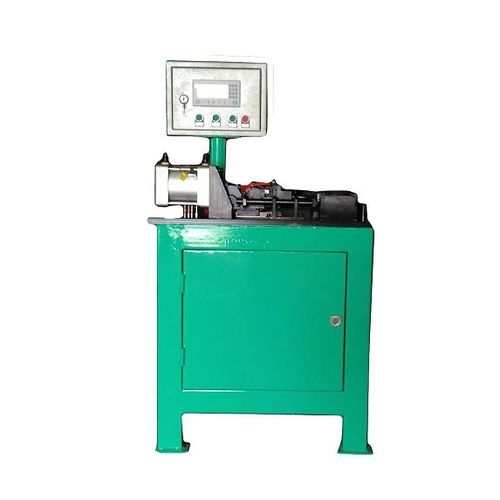

Shrink fit machine

shrink fit machine
shrink fit machine
Add to favorites
Compare this product


I. Purpose SKJ02 Shrinkageing (Flaring) Machine is equipment for shrinkageing and flaring the double-layer brazing pipe (Bundy pipe), red copper pipe and ordinary copper pipe. It is able to conduct shrinkageing and flaring on pipe fittings of cooling system of refrigerators and freezers. II. Main Technical Parameters 1.Shrinkageing (Flaring) Materials: double-layer brazing pipe, red copper pipe, ordinary copper pipe 2.Material O.D: Ф4.0~Ф8mm 3.Material wall-thickness: 0.6mm~0.8mm 4.Shrinkageing (Flaring) length: ≤20mm 5.Pipe clamp force: ~2500kg 6.Ejector thrust: >800kg 7.Amount of Work position: two-position 8.Working mode: Auto/Manual 9.Production efficiency: Single-position, 360 PCS/Hour; Two-position, 250 PCS/Hour 10.Working air pressure: ≥0.6Mpa Air consumption: 0.3M2/min 11.Working voltage: AC220V 100W 12.Boundary dimension: 900×600×1300mm
