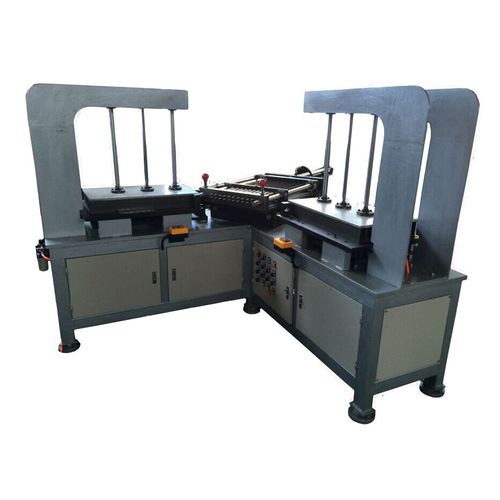

Double worktable fins inserting & expanding machine Principle of operation 1. The pipe expanding machine consists of inserting fins die, discharge device, pressure fins device, locating device, expanding rod retractable device, guide device, fins plance workbench, expanding rod workbench and electrical controlled device. The whole procedure is driven by cylinder and hydro cylinder and the electrical equipment is controlled by relay system. 2. The procedure is as follows: first of all, insert the fin into the fins die one by one, put the twisted and flattened pipe on the expanding rod, press the start button, the pressure device start to work, meanwhile the locating device and cylinder push forward the expand rod retractable and guide devices to be located and locked. Secondly, The hydro cylinder of expanding rod retractable and guide device insensibly inserts the expanding rod and pipe into the fin of the chip die, then the expanding rod rebounds , leave the pipe in the fin, meanwhile reset the pressure device. At last, The expanded evaporator is push out the insert die by discharge device, so the whole procedure is finished. 3. Our pipe expanding machine is of good quality because of our material and processing technology. Here are the advantages: The insert die, guide board and expanding rod is made of die steel. The difference between die steel and 45# steel or spring steel is that, after wire electrode cutting, the die steel’s deformation amount is smaller than others, so that it can keep the insert die and expanding rod straight and rigid, therefor it satisfy the technical requirement at the most,
