protection sleeve / corrugated / for pipes / for cables
-30 °C ... +120°C

{{requestButtons}}

Characteristics

  • Type:

    protection

  • Structure:

    corrugated

  • Applications:

    for pipes, for cables

  • Material:

    aluminum, fiberglass

  • Protection level:

    heat/cold-resistant, flame-retardant, fireproof

  • Other characteristics:

    reflective aluminized, flexible

  • Temperature:

    Min.: -45 °C (-49 °F)

    Max.: 550 °C (1,022 °F)

  • Diameter:

    Min.: 8 mm

    Max.: 120 mm

Description

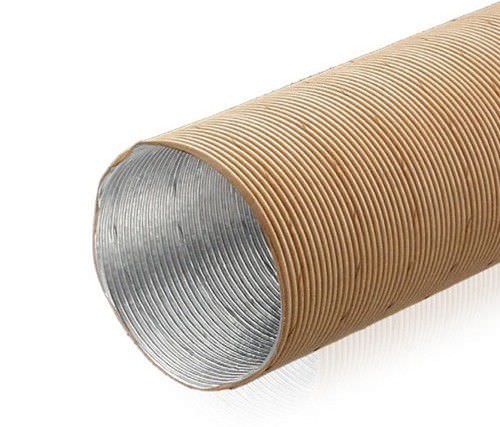

This fiberglass corrugated tube is made using kraft and aluminium. The innermost layer comprises of aluminium while the remaining two layers are kraft.

The tube has multiple uses, ranging from controlling cables, gear cables, cooling tubes, air conditioning or ventilation pipes to heat sensitive parts for protection. They may also be utilized as fuel hoses and wire sets, or on copper pipes which are used in shifter cables, speed indicator cables, hydraulic systems, electrical cables and LPG systems for Protection.

The bending radius of these tubes is 1.5 times more than that of ID. These tubes can resist temperature ranging from 30° to 120° C.
