Aluminized insulation blanket

removablecustom-madefor drums

Product Overview

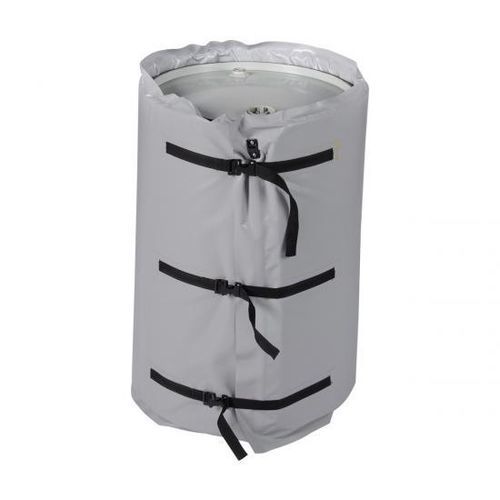

The Custom Removable Drum Insulation Cover is a reusable thermal jacket designed for industrial drums, barrels, tanks and process containers that require heat retention, temperature stability, personnel protection or energy saving. It is manufactured with high-temperature insulation materials, durable outer fabrics and removable fastening systems, allowing the cover to be installed, removed and reused without welding, drilling or permanent modification.

Quick Summary

• Product Type: Removable drum insulation cover
• Main Function: Heat retention and surface protection
• Custom Options: Size, thickness, material, cut-outs
• Typical Use: Drums, barrels, tanks and containers

Main Benefits

• Reduces heat loss from drum and barrel surfaces
• Helps maintain stable material temperature during storage or processing
• Improves energy efficiency when used with heated drums or drum heaters
• Reduces operator contact with hot metal surfaces
• Removable and reusable design supports inspection, cleaning and maintenance
• Custom cut-outs allow access to valves, outlets, handles, lids and fittings
• Flexible design can be made for standard or non-standard drum dimensions

Recommended Applications

• Chemical processing: chemical drums, additive containers, process barrels and heated liquid storage
• Adhesives and resins: maintain viscosity and process consistency
• Oil and lubricant storage: heated oil drums and fluid storage to improve flow performance
• Food and beverage processing: ingredient drums, syrup containers and heated processing barrels (with appropriate material selection)
• Pharmaceutical production: removable insulation for controlled production areas and maintenance access
• Industrial heating systems: used with drum heaters, heated jackets and process heating equipment

Material and Construction
The cover normally consists of an outer protective fabric, an inner insulation layer, high-temperature stitching and fastening components such as hook and loop tape, straps, buckles or stainless steel hardware. Depending on the application, the cover can be made with fiberglass fabric, silicone coated fiberglass fabric, PTFE coated fabric, aluminized fabric, ceramic fiber insulation, fiberglass needle mat or other thermal insulation materials.

Part / Available Options / Purpose
Outer Fabric / Fiberglass fabric, silicone coated fiberglass, PTFE coated fabric, aluminized fiberglass, coated technical textiles / Protects the insulation layer and provides surface durability
Insulation Layer / Fiberglass mat, ceramic fiber insulation, needle felt, multilayer insulation materials / Reduces heat loss and improves thermal performance
Inner Facing / High-temperature fabric, coated fabric or customized liner material / Contacts the drum surface and supports repeated use
Fastening System / Hook and loop tape, straps, buckles, lacing hooks, stainless steel wire or custom closures / Allows quick installation and removal
Custom Openings / Valve holes, outlet cut-outs, pipe openings, handle access, lid sections / Allows normal operation without removing the full cover

Custom Sizes and Configurations
Covers can be produced for standard 55 gallon drums, 200 liter drums, small barrels, large process containers and non-standard cylindrical vessels. Options include full-height jacket, partial-height jacket, top lid cover, bottom section cover or multi-piece insulation systems. For accurate production, provide drum diameter, drum height, surface temperature, required insulation thickness, valve position, pipe direction, lid type and installation photos or drawings.

Order & Logistics
MOQ: 50
Payment: FOB, EXW, CIF
Shipping port: Shanghai, Ningbo or any other port

Use Together With

• Removable insulation blankets for filters, valves, flanges, pumps, tanks and process equipment
• High temperature fabrics for custom fabricated insulation parts and thermal barriers
• Fire sleeves and heat reflective sleeves for hose, cable and hydraulic line protection

Characteristics / Technical specifications

• Product Type: Removable drum insulation cover
• Manufacturer: PK Firesleeve (custom fabrication to site requirements)
• Typical Materials: fiberglass fabric, silicone coated fiberglass, PTFE coated fabric, aluminized fiberglass, ceramic fiber insulation, fiberglass needle mat
• Available Fastening Methods: hook and loop, straps, buckles, lacing hooks, stainless steel wire, custom closures
• Custom Openings: valve holes, outlet cut-outs, pipe openings, handle access, lid sections
• Standard Sizes: configurable for 55 gallon (200 L) drums and non-standard drums
• Designs: full-height, partial-height, lid cover, bottom section, multi-piece systems
• MOQ: 50
• Payment Terms: FOB, EXW, CIF
• Shipping Port Options: Shanghai, Ningbo or other ports
