Flange guard BSTFLEX

Overview

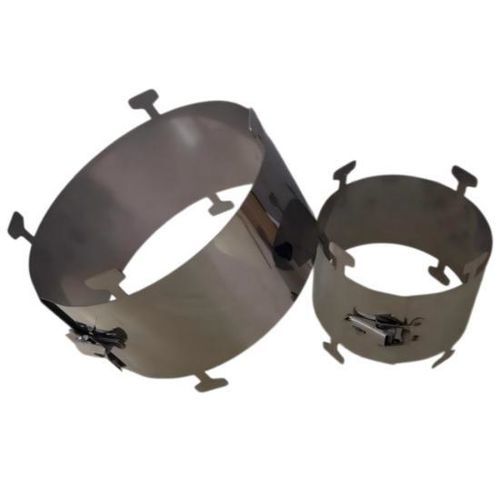

BSTFLEX stainless steel band-type flange guards are removable metal covers that fit externally around the perimeter of bolted flanged connections. The open-sided formed band, formed edge tabs and stainless steel latch provide a secure external fit while allowing removal for inspection and maintenance. Band diameter and width are selected to match the assembled flange geometry and installation clearances. Material grade and application-specific requirements are confirmed during quotation.

Key Features

• Open-sided formed stainless steel band surrounding flange perimeter
• Formed edge tabs per reference design; final arrangement confirmed by drawing
• Stainless steel latch closure for external opening and removal
• External fit around assembled flange (not inserted between flange faces)
• Sizing based on flange geometry (band diameter, band width and clearance) rather than nominal pipe size alone

Construction and Ordering Specifications
Item: Specification or Ordering Requirement
Product Type: Stainless steel band-type flange guard
Brand: BSTFLEX
Body Construction: Formed stainless steel band with open sides
Material Grade: Specify required stainless steel grade in inquiry; confirmed in quotation
Closure: Stainless steel latch; confirm component material with order
Edge Configuration: Formed tabs per reference design; final arrangement per agreed drawing
Installation Position: External fit around flange assembly
Principal Dimensions: Band diameter, band width and clearance around assembled connection
Reference Flange Standard: HG/T 20592 flange dimensions; identify size and pressure designation when ordering
Other Flange Standards: Submit applicable standard and dimensional drawing for review
Application Information: Provide process medium, operating temperature, operating pressure and required protective function

Information to Provide for Correct Sizing

• Flange standard, nominal size and pressure designation (establishes series and dimensional reference)
• Flange outside diameter (to determine band diameter and fit)
• Assembled connection width (to determine band width and coverage)
• Bolt and nut projections (identify potential interference with band, tabs or closure)
• Pipe outside diameter and nearby obstructions (space available for positioning and removal)
• Front and side photographs (site details not visible on drawings)

Application Guidance
Common applications include chemical processing, pharmaceutical and power-plant piping. For steam or molten-salt duties, specify process medium and operating conditions before selection. For valves, specify each flanged connection and provide photos showing valve body, handle or actuator; a band around one flange does not enclose valve mechanisms. For spray-shield duties, state required protective performance and any test requirements. An external metal band alone is not a validated pressure seal or mist-suppression system unless additional internal mesh or construction is specified and agreed.

Installation and Inspection
Have authorized personnel install the guard under site safe-work procedures, including isolation, depressurization and cooling where required. Do not approach active leaks to install or adjust a cover. Verify clearance around bolts and surrounding equipment before engaging the latch. Do not force or distort the band to compensate for incorrect size. Inspect band, tabs and closure for damage, deformation or corrosion before reuse. This product is an external guard and is not a pressure-retaining repair clamp; it does not repair failed gaskets, damaged flanges or defective bolted connections.

Frequently Asked Questions (selected)

• Difference vs full-enclosure cover: band-type guards surround the flange perimeter and leave sides open; full-enclosure covers include annular side panels and different coverage geometry
• Interchangeability: do not assume one guard fits every flange of the same nominal pipe size; check flange standard, pressure designation, outside diameter and assembled width
• Pressure class: flange pressure designation identifies the piping connection but does not define protective performance of an external guard; specify spray-shield testing if required
• Thermal insulation: the metal band is not a removable insulation jacket; specify thermal insulation separately if required

Technical specifications

• Product type: Stainless steel band-type flange guard
• Brand: BSTFLEX
• Body construction: Formed stainless steel band with open sides
• Closure: Stainless steel latch
• Edge configuration: Formed tabs (final arrangement per agreed drawing)
• Installation: External fit around assembled flange
• Principal dimensions: Band diameter, band width, installation clearance
• Reference flange standard: HG/T 20592 (other standards accepted with drawings)
• Application data required: Flange drawing or measured dimensions, process medium, operating temperature and pressure
