Square bellows BSTFLEX

rectangularPTFEcoated fabric

Product overview

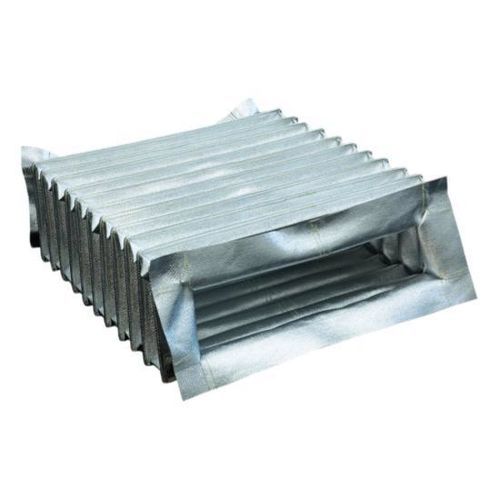

BSTFLEX sewn rectangular bellows are custom-fabricated protective covers for machine ways, linear rails, ball/lead screws, actuators and other moving components with rectangular or square profiles. The accordion-style sewn construction extends and compresses with travel while protecting critical parts from metal chips, dust, coolant, oil, abrasive particles, sparks and heat. Each bellow is specified to fit the application with custom inside width, inside height, extended and compressed lengths, stroke and fold geometry. Material and mounting configurations are selected according to environment and installation requirements.

Custom rectangular bellows — construction & options
Bellows shape: rectangular, square or custom
Inside width: custom
Inside height: custom
Outside dimensions: custom
Extended length: custom
Compressed length: custom
Stroke: per machine travel
Fabric: selected for environment and temperature
Mounting: flange, plate, collar, clamp or custom
Closure: closed, zipper, hook-and-loop or custom
Reinforcement: optional (reinforced ends, internal supports)
Production: prototype and OEM production available

Material options

• Coated nylon fabric — flexible, abrasion-resistant for general-purpose machine protection.
• Silicone-coated fiberglass — heat-resistant for elevated temperatures, sparks and radiant heat exposure.
• PTFE-coated fiberglass — higher temperature capability, chemical resistance and low-adhesion surface.
• Aluminized fiberglass — reflective layer for radiant heat environments such as furnaces and foundries.
• Custom technical fabrics — other material combinations evaluated based on operating environment.

Machine way and linear rail protection
Rectangular bellows provide a flexible barrier around exposed machine ways and linear rails, preventing ingress of metal chips, grinding debris, dust, oil, coolant, sparks and abrasive particles while allowing required travel.

CNC and automation applications

• CNC machining centers
• Milling machines
• Linear positioning systems
• Industrial robots
• Automated assembly equipment
• Packaging machinery
• Lift mechanisms
• Material handling equipment
• Special-purpose machines
• Machine tool retrofits

High-temperature rectangular bellows
For high-temperature applications, sewn bellows can be manufactured from heat-resistant fabrics (silicone-coated fiberglass, PTFE-coated fiberglass, aluminized fiberglass) selected for continuous operating temperature, short-term exposures, radiant heat, sparks, hot-particle exposure, oil/coolant contact and flexing frequency.

Mounting and installation options

• Rigid mounting plates
• Fabric flanges
• Reinforced end panels
• Clamp-mounted ends
• Grommets
• Hook-and-loop closures
• Zipper openings
• Custom fastening systems

Typical applications

• Machine ways
• Linear rails
• Ball screws
• Lead screws
• CNC axes
• Lift tables
• Linear actuators
• Automated machinery
• Robotic equipment
• Foundry machinery
• Metalworking equipment
• Special industrial machinery

Specifications / technical details

• Brand / Product line: BSTFLEX
• Product type: Sewn rectangular fabric bellows (accordion-style, extend/compress)
• Customization parameters: inside width, inside height, outside dimensions, extended length, compressed length, stroke, fold geometry, mounting arrangement, fabric construction
• Materials available: coated nylon, silicone-coated fiberglass, PTFE-coated fiberglass, aluminized fiberglass, other technical fabrics
• Mounting options: flange, plate, collar, clamp or custom; rigid plates, fabric flanges, reinforced end panels, clamp-mounted ends, grommets
• Closure options: closed, zipper, hook-and-loop or custom (split/zippered constructions for easier installation)
• Reinforcement: optional (reinforced ends, internal supports or wire support)
• Production: prototype and OEM production available
• Typical contaminants addressed: metal chips, grinding debris, dust, oil, coolant, sparks, abrasive particles
• Order (moq): 1
• Information typically used for custom production/specification: inside width; inside height; maximum allowable outside width/height; fully compressed length; fully extended length; required travel/stroke; mounting dimensions; operating temperature; contaminant/environment details; drawing, photograph or sample
