Rectangular bellows BSTFLEX

roundsquaremulti-material

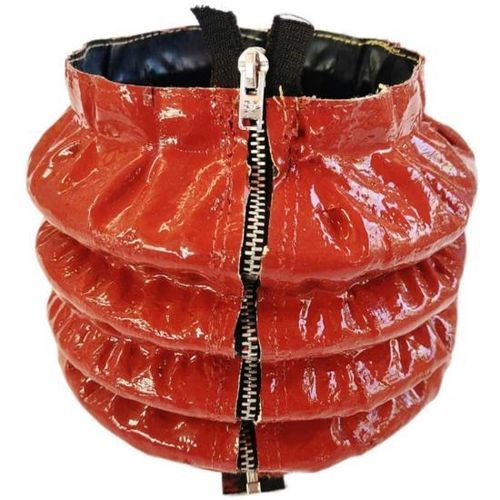

Product overview BSTFLEX sewn zippered bellows are custom flexible covers designed to protect machine ways, linear rails, ball screws, lead screws, actuators and other moving components with round, square or rectangular profiles. The accordion-style fabric expands and compresses with travel, shielding components from dust, metal chips, abrasion, oil, coolant, sparks and heat.

Quick-Access Zipper Construction The integrated zipper allows the bellows to open along their length so they can be fitted around an existing rod, shaft, screw, guide or actuator without full disassembly. This removable construction is suited to replacement projects, maintenance-intensive equipment and applications where closed bellows are difficult to install.

Serviceability benefits

• Initial installation
• Routine inspection
• Lubrication access
• Component servicing
• Bellows replacement
• Emergency maintenance

Custom Closure Options Closure systems are selected per application:

• Heavy-duty zipper closures
• Hook-and-loop (Velcro) closures
• Snap fasteners
• Combination fastening systems
• Fully closed constructions

Custom Dimensions Each sewn zippered bellows is manufactured to the required inside/outside dimensions, compressed and extended lengths, stroke and fold geometry to match the protected component and intended travel.

Specification
Bellows shape: Round, rectangular or custom
Inside dimensions: Custom
Outside dimensions: Custom
Extended length: Custom
Compressed length: Custom
Stroke: According to machine travel
Closure: Zipper, hook-and-loop, snap or custom
Fabric: Selected for operating environment
Mounting: Collar, flange, clamp or custom
Reinforcement: Optional
Production: Prototype and OEM production available

Material Options BSTFLEX produces zippered fabric bellows using technical textiles chosen for contamination type, temperature and mechanical conditions:

• Coated nylon — flexibility and abrasion resistance for general industrial use
• Silicone-coated fiberglass — for elevated temperatures, sparks or hot surfaces
• PTFE-coated fiberglass — chemical resistance and reduced surface adhesion
• Aluminized fiberglass — radiant heat protection near furnaces or hot process equipment
• Custom technical fabrics — for specific temperature, abrasion, oil or chemical exposures

Mounting Options Custom mounting configurations include:

• Fabric collars
• Clamp-mounted ends
• Reinforced end sections
• Metal mounting flanges
• Grommets
• Custom mounting plates and special fastening arrangements

Typical Applications

• Hydraulic machinery
• CNC machine tools
• Ball screws and lead screws
• Linear guide systems and shafts
• Industrial automation and robotics
• Lifting equipment and telescoping mechanisms
• Foundry and metal processing equipment
• Packaging machinery and material handling systems
• Maintenance and retrofit projects

Information required for custom production When specifying a custom bellows provide:

• Bellows shape
• Inside diameter or inside width and height
• Maximum allowable outside dimensions
• Fully compressed length
• Fully extended length
• Required stroke
• Zipper/closure position
• Mounting method
• Operating temperature
• Environmental exposure
• Drawing, photograph or existing sample

Technical specifications

• Order (MOQ): 1
• Shapes: Round, rectangular or custom
• Closure types: Heavy-duty zipper, hook-and-loop, snap, combination or fully closed
• Fabrics: Coated nylon, silicone-coated fiberglass, PTFE-coated fiberglass, aluminized fiberglass, custom technical fabrics
• Mounting: Collar, flange, clamp, reinforced ends, grommets, custom plates
• Stroke: Engineered according to machine travel
• Reinforcement: Optional
• Production: Prototype and OEM production available
