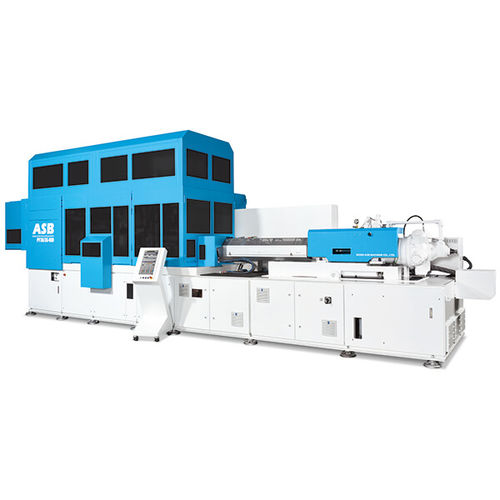

Injection-stretch blow molding machine PF36 series
for PLAfor PETfor PET bottles

injection-stretch blow molding machine
injection-stretch blow molding machine
Add to favorites
Compare this product


Characteristics

Type
injection-stretch
Treated material
for PET, for PLA
Finished product
for PET bottles
Other characteristics
multi-cavity, high-output, for the beverage industry, 1.5 step
Hollow part volume

Min.: 0 l (0 gal)

Max.: 12 l (3.2 gal)

Description

High output 1.5-step PET bottle molding. Higher quality production & vastly reduced space compared to 2-step molding. The PF36 Series is an incredibly compact molding solution that provides high output of PET bottles. In this system, PET resin is molded first into preforms, then directly into bottles all within one machine ensuring the highest possible container quality and visual appeal that easily surpasses 2-step molding methods yet does so within just 25-30% of the factory space required by a competitive 2-step system. The PF36 Series consists of five models; – 36 injection and 12 blow cavities for up to 0.6-liter (600ml) bottles – 24 injection and 8 blow cavities for up to 1.5-liter (1500ml) bottles – 18 injection and 6 blow cavities for up to 2-liter (2000ml) bottles – 12 injection and 4 blow cavities for up to 5-liter (5000ml) bottles – 9 injection and 3 blow cavities for up to 12-liter (12000ml) bottles such as Bag-In-Box In addition, a custom designed model, the PF24-8B/12H, can mold up to 3-liter bottles with inserted handles in 12 injection and 4 blow cavities. Feature Advanced “Vision1” Control System Energy Saving Molding Process More Compact Than Equivalent 2-Step Molding Higher Quality Than 2-Step Molding Hybrid Operation Cavitation Optimized for Various Products Optimized Injection & Blow Molding Neck Orientation Option Available In-Mold Handle Processing (PF24-8B/12H model) Post Molding Handle / Deep Pinch Grip Handle Technology Applications Beverages, edible oil, salad dressing, seasoning, detergent, household, liquor, general foods, pharmaceutical, agrochemical, etc.
