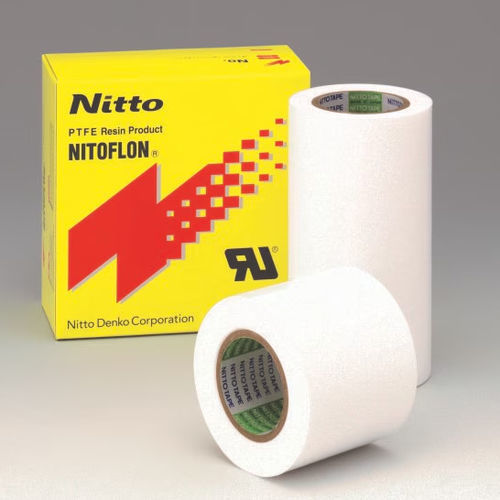

Release film NITOFLON™ No.900UL

insulationfluoropolymerPTFE

Product overview
Fluoroplastic film made of PTFE for industrial applications requiring heat‑resistant electrical insulation, low friction and reliable mold release. Continuous recommended service range −100°C to 260°C; UL94 flame retardancy certified (E52859).

Features

• Wide thickness lineup from 0.03 to 1.5 mm.
• Excellent chemical resistance to most acids, alkalis and organic solvents.
• High dielectric strength and low dielectric loss for electrical insulation.
• Continuous use recommended from −100°C to 260°C; short‑term use at higher temperatures possible.
• Very low kinetic friction among solid materials.
• Adhesives and residues do not adhere easily—facilitates mold release.
• Non‑hygroscopic and minimal degradation from UV exposure.
• UL94 flame retardancy certified (VTM‑0 for 0.03–0.24 mm / V‑0 for >0.25 mm, registration no. E52859).

Structure
Single‑layer fluoroplastic (PTFE) film construction (see product page for structure diagram).

Applications

• Improve releasability in molding processes.
• Mold release and cushioning for thermal compression bonding such as ACF and TCB.
• Heat‑resistant electrical insulation for motor and transformer coils.

Properties (representative characteristic values)
Thickness (mm): 0.03, 0.05, 0.08, 0.10, 0.13, 0.18, 0.3, 0.5, 1.0
Tensile strength (MPa): 47, 50, 50, 50, 50, 50, 50, 45, 40
Elongation (%): 300, 300, 300, 310, 320, 330, 330, 370, 400
Breakdown voltage (kV): 4.2, 6.0, 8.3, 9.6, 11.6, 14.1, 19.5, 26.7, 37.7
Dielectric constant (1 MHz): approx. 2.1
Volume resistivity (Ω·cm): > 1×10^17
Chemical resistance (examples): HNO3 60%: 0% change; NaOH 40%: 0% change; Acetone: 0% change
Specific gravity: 2.1–2.3
Coefficient of kinetic friction: ~0.1
Flame resistance: UL94 (E52859) — VTM‑0 (0.03–0.24 mm) / V‑0 (>0.25 mm)

Experimental videos
Product page includes demonstration videos for heat resistance, sliding properties, electrical insulation, chemical resistance, mold release and weather resistance.

Technical specifications / Characteristics

• Trade name / model: NITOFLON™ No.900UL
• Material: Fluoroplastic (PTFE)
• Operating temperature (recommended): continuous −100°C to 260°C (shorter exposures to higher temperatures possible)
• Thickness range (lineup): 0.03 mm to 1.5 mm
• UL94 flame retardancy: Registration no. E52859; VTM‑0 (0.03–0.24 mm) / V‑0 (>0.25 mm)
• Dielectric constant (1 MHz): approx. 2.1
• Volume resistivity: > 1×10^17 Ω·cm
• Specific gravity: 2.1–2.3
• Coefficient of kinetic friction: approx. 0.1
• Tensile strength and elongation: see properties (values vary by thickness)
• Chemical resistance: resistant to most acids, alkalis and organic solvents

Note
*Values shown are representative measurement examples and are not guaranteed specifications.*
