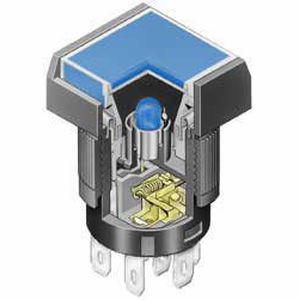

IP65 push-button switch YB series

thermoplasticLED-illuminatedsnap-action

3A Power Level & 0.4VA Logic Level; Snap-in and Bushing Mount; Square, Round and Rectangular Cap Options; IP65 Options, UL, CSA, cULusShort Body Pushbutton SwitchesFull face or spot illumination with incandescent lamps or multi-element LEDs, with or without resistors. Choice of super bright LEDs in white, green, and blue or bright red, amber, and green LEDs. Nonilluminated models available. Unique thermoplastic elastomer seal inside caps plus rolled sleeve of nitrile butadiene rubberat joining of housing and inner case, all for added protection to interior mechanism. Dust and oil tight as well as splashproof panel seal models qualifiy to IP65 of IEC529 Standards (similar to NEMA 4 and 13). Panel seal models provided with exterior o-ring. Distinctive design of snap-action contacts for shock resistance, long life and sensitive actuation. High density design to give behind panel depth of less than one inch. Terminals are epoxy sealed to lock out flux, dust, solvents and other contaminants. Latchdown for indication of circuit status, plus audible, tactile feedback with smooth, responsive operation.
