Vertical order-picker OVS-010

for warehousemobilehigh-level

Overview

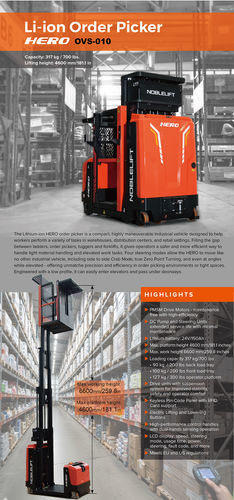

OVS-010(HERO) is an electric order picker designed for vertical order picking and goods handling in warehouses and production areas. Powered by a 24 V LiFePO4 battery (150 Ah) with a built-in 24 V / 30 Ah charger, it provides extended operating autonomy, a high platform reach and a compact turning radius for dense storage layouts.

Applications

• Order picking at height in warehouses and distribution centers
• Inventory management and replenishment in narrow aisles
• Maintenance and installation tasks requiring elevated access

Technical specifications

• Manufacturer's type designation: OVS-010
• Operator type: order picker
• Load capacity (storage table): 100 kg / 220 lb
• Load capacity (platform): 127 kg / 280 lb
• Service weight (with battery): 1350 kg / 2976 lb
• Maximum platform height: 4600 mm / 181.1 in
• Maximum work height: 6600 mm / 259.8 in
• Turning radius: 800 mm / 31.5 in
• Battery: LiFePO4 24 V / 150 Ah
• Battery charger: 24 V / 30 Ah (Built-in)
• Drive unit: PMSM

Options & equipment

• Integrated 24 V / 30 Ah battery charger
• Custom platform dimensions and load securing options
• Operator ergonomics and safety accessories (guarding, non-slip surfaces)
