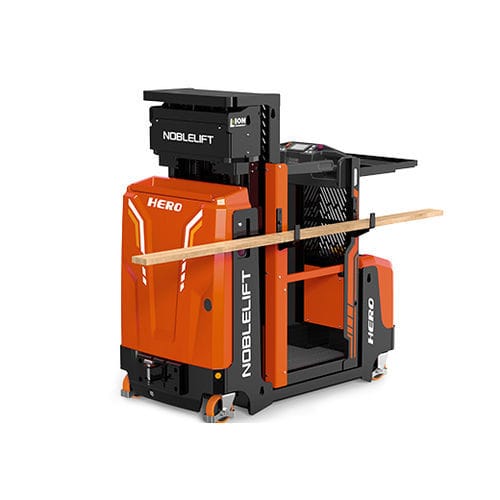

Electric order-picker OVS-010(HERO)

Product
OVS-010(HERO)
Li-ion order picker. Available load capacity options: 90 kg, 100 kg, 127 kg.

Parameters
Manufacturer’s type designation: OVS-010
Operator type: order picker
Storage table load capacity: 100 kg (approx. 220 lb)
Platform load capacity: 127 kg (approx. 280–300 lb)
Service weight (with battery): 1350 kg (2976 lb)
Maximum platform height: 4600 mm (181.1 in)
Maximum work height: 6600 mm (259.8 in)
Turning radius: 800 mm (31.5 in)
Battery voltage / nominal capacity (LiFePO4): 24 V / 150 Ah
Built-in charger: 24 V / 30 Ah
Drive unit: PMSM (Permanent Magnet Synchronous Motor)

Technical specifications

• Model: OVS-010(HERO)
• Product type: Li-ion order picker
• Available load capacity options: 90 kg, 100 kg, 127 kg
• Storage table load capacity: 100 kg
• Platform load capacity: 127 kg
• Service weight (with battery): 1350 kg
• Maximum platform height: 4600 mm
• Maximum working height: 6600 mm
• Turning radius: 800 mm
• Battery: 24 V / 150 Ah (LiFePO4)
• Built-in charger: 24 V / 30 Ah
• Drive unit: PMSM
