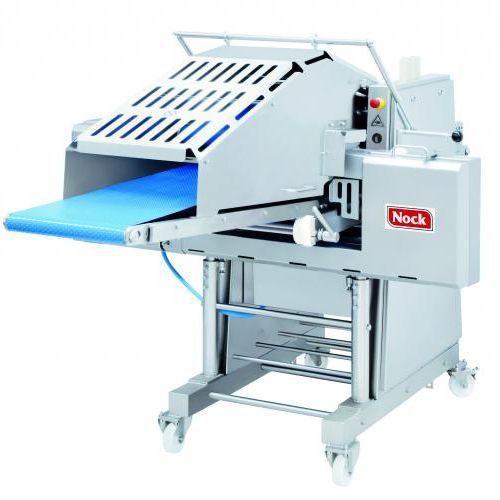

Fish slicing machine CORTEX CB435/4E HVC
meatautomaticcircular blade

fish slicing machine
fish slicing machine
fish slicing machine
fish slicing machine
fish slicing machine
fish slicing machine
fish slicing machine
Add to favorites
Compare this product


Food product
meat, for fish
Operating mode
Cutting tool
circular blade
Electric powered
400V three-phase
stainless steel
on casters
vertical, horizontal
Other characteristics
Engine power

1.3 kW
(1.8 hp)


1,520 mm
(60 in)


1,530 mm
(60 in)


385 kg
(849 lb)


Cutting-machine with band blade for 1 horizontal cut and circular blade cutting unit for vertical cuts features: - for 1 horizontal cut plus many vertical cuts or only 1 horizontal cut or only vertical cuts thickness of the horizontal cut infinitely adjustable from approx. 1mm distance of circular blades adjustable in steps application: - perfect for cutting e.g. strips of chicken breast or turkey meat, thin escalopes, fish fillets for sushi, etc. no water or compressed air requirement STANDARD EQUIPMENT • band blade for 1 horizontal cut • horizontal cutting modul with upper pressure conveyor • circular blade cutting unit for many vertical cuts • infeed conveyor • discharge conveyor • intersection roller for circular blades with quick change system • NOCK POWER PLATES® for typical NOCK service friendliness • NOCK EASY-FLOW® Sicherheitsabdeckhaube with pneumatic springs for exemplariy operational safety • lift out device for blade shaft • lockable castors • stainless steel OPTIONS • Pressure roller for horizontal cutting modul • separation conveyor for separate discharge of the upper slice • cleaning wagon for 2 blade shafts • other operational speeds • frequency converter • scraper on discharge conveyor • 90° cutting system to slice cubes



No catalogs are available for this product.
