Automation PC NP-6116

expansionboxembedded

NP-6116-J6412 | Fanless Automation PC with Compact Design
Fanless automation PC with Intel Celeron J6412, 3 x GbE LAN, RS232/485, M.2 SSD storage, DP & HDMI display, and DIN Rail mount

Features

• Fanless Industrial PC with DIN Rail & wall-mounting support for automation applications
• Intel® Celeron J6412, 2.0~2.6GHz, 4 cores/4 threads, 10W TDP
• Triple GbE LAN for reliable industrial networking
• 1 x RS232 & 1 x RS485 for industrial automation and communication
• DP (4096×2160 @60Hz) & HDMI (3840×2160 @60Hz) for industrial HMI applications
• Mini-PCIe slot for 3G/4G module expansion
• Wide-range DC12~24V power input with overcurrent, overvoltage, and polarity protection
• Aluminum-magnesium alloy chassis, fully fanless for silent operation
• Compact and rugged design, optimized for control cabinets and automation

NP-6116-J1900 | Fanless Automation PC with Compact Design
Fanless automation PC with Intel Celeron J1900, dual GbE LAN, RS232/485, M.2 SSD storage, DP & HDMI display, and DIN Rail mount

Features

• Fanless Industrial PC with DIN Rail & wall-mounting support for automation applications
• Intel® Celeron J1900, 2.0GHz, 4 cores/4 threads, 10W TDP
• Dual GbE LAN for reliable industrial networking
• 1 x RS232 & 1 x RS485 for industrial automation and communication
• DP (2560×1600 @60Hz) & HDMI (1920×1080 @60Hz) for industrial HMI applications
• Mini-PCIe slot for 3G/4G module expansion
• Wide-range DC12~24V power input with overcurrent, overvoltage, and polarity protection
• Aluminum-magnesium alloy chassis, fully fanless for silent operation
• Compact and rugged design, optimized for control cabinets and automation

NP-6116-N97 | Fanless DIN Rail Box PC with 4 LAN, Dual Display & M.2 SSD
Industrial fanless PC with Intel N97 CPU, 4 LAN, M.2 SSD, HDMI + DP, Mini PCIe expansion, designed for DIN rail or wall mounting

Features

• Fanless Industrial Box PC with aluminum-magnesium alloy chassis
• Powered by Intel® N97, 4-core processor, 6MB cache, 12W TDP
• 4 x Intel i210-AT Gigabit LAN for high-reliability networking
• 2 x COM ports: 1 x RS232, 1 x RS485
• 1 x HDMI + 1 x DisplayPort, up to 4K resolution
• 2 x USB 3.0 + 2 x USB 2.0 for peripheral connectivity
• 1 x M.2 2242 M-Key slot for high-speed SSD storage
• 1 x Mini PCIe with SIM slot for 4G/Wi-Fi module expansion
• 12–24V DC input, protected against overvoltage, overcurrent, and reverse polarity
• Compact size for DIN rail or wall-mounting
• Wide temperature tolerance: -20°C to 60°C (SSD)

DESCRIPTION

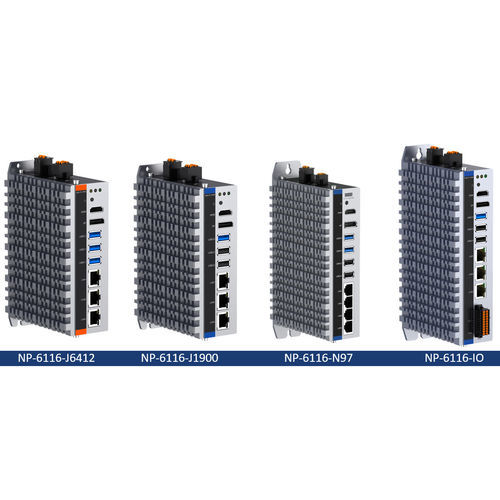

The NP-6116 series is a family of ultra-compact fanless automation PCs designed for industrial gateways, SCADA and Ignition gateways, data acquisition, remote equipment monitoring, PLC communication, serial-to-Ethernet integration and edge-control applications.

Depending on the selected model, the series supports Intel Celeron J1900, Intel Celeron J6412 or Intel Processor N97 platforms. Available factory configurations provide multiple Gigabit Ethernet ports, industrial serial communication, isolated digital I/O, CAN bus and wireless expansion in a compact aluminum enclosure suitable for DIN-rail or wall-mounted installation.

AVAILABLE CONFIGURATIONS

• NP-6116-J1900: compact fanless automation PC based on the Intel Celeron J1900 platform, with multiple Gigabit Ethernet ports, RS232, RS485, USB connectivity, HDMI and DisplayPort outputs.
• NP-6116-J6412: Intel Celeron J6412 configuration with three Gigabit Ethernet ports, three USB 3.1 ports, RS232, RS485, HDMI, DisplayPort and M.2 2242 storage.
• NP-6116-N97: Intel Processor N97 configuration with four Intel Gigabit Ethernet ports, two USB 3.0 ports, two USB 2.0 ports, RS232, RS485, HDMI, DisplayPort, audio and programmable indicators.
• NP-6116-IO-N-J1900: Intel Celeron J1900 configuration with 8 digital inputs and 8 NPN digital outputs.
• NP-6116-IO-P-J1900: Intel Celeron J1900 configuration with 8 digital inputs and 8 PNP digital outputs.
• NP-6116-IO-N-J6412: Intel Celeron J6412 configuration with three Gigabit Ethernet ports, 8 digital inputs and 8 NPN digital outputs.
• NP-6116-IO-P-J6412: Intel Celeron J6412 configuration with three Gigabit Ethernet ports, 8 digital inputs and 8 PNP digital outputs.
• NP-6116-L2: industrial networking configuration with five Gigabit Ethernet ports for gateway and network-segmentation applications.
• NP-6116-COM2: serial expansion configuration with two additional configurable RS232 or RS485 COM ports.
• NP-6116-COM4-J6412: serial-dense Intel Celeron J6412 configuration with four additional ports configurable for RS232, RS485 or RS422, providing five serial ports in total.
• NP-6116-CAN2: industrial communication configuration with two CAN 2.0A/B channels for AGV, energy storage, equipment communication and edge-control applications.
