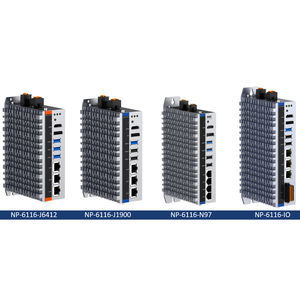

Box PC NP-61 series
embeddedwall-mountedDIN rail

Box PC - NP-61 series - NODKA Automation Technology - embedded / wall-mounted / DIN rail
Box PC - NP-61 series - NODKA Automation Technology - embedded / wall-mounted / DIN rail
Box PC - NP-61 series - NODKA Automation Technology - embedded / wall-mounted / DIN rail - image - 2
Box PC - NP-61 series - NODKA Automation Technology - embedded / wall-mounted / DIN rail - image - 3
Box PC - NP-61 series - NODKA Automation Technology - embedded / wall-mounted / DIN rail - image - 4
Add to favorites
Compare this product
Go to the NODKA Automation Technology website for more information

Characteristics

Type
box
Configuration
embedded, wall-mounted, DIN rail
Processor
Intel® Pentium, Intel® Celeron®, Intel® Core i5, Intel® Core™ i5-8500, Intel® Core i7 - 7700T, Intel® Core™ i3-6100T, Intel® Core™ i5-6400T, Intel® Core™ i5-11500T, Intel® Core™ i7-8700, Intel® Skylake Processor, Intel® Core i7, Intel® Core i3, Intel® Core™ i5-6500, 8th generation Intel® Core™ i5, Intel® Core™ i5-10400, Intel® Core™ i3-6100, Intel® Core™ i3-8100, 6th generation Intel® Core™, Intel® Core i7 - 7700, Intel® Core™ i3-10100T, Intel® Core™ i3-10100, 11th Generation Intel® Core™, Intel® Core™ i7-6700T, 8th generation Intel® Core™ i3, 9th Generation Intel® Core™, 10th generation Intel® Core™, Intel® Core i5 - 7500, Intel® Kaby Lake Processor, 7th Generation Intel® Core i7-8565U, Intel® Core™ i5-7400, Intel® Core™ i3-7100, Intel® Core™ i7-6700, 8th generation Intel® Core™ i7
Ports
HDMI, VGA, DDR4 SO-DIMM, USB 2.0, RS-232, USB 3.0, RS-485, Mini PCIe, mSATA
Operating system
Linux® Ubuntu™, Debian Linux, Windows 10 IoT Enterprise
Size
compact
Domain
industrial, automation, for IoT applications, machine vision, for harsh environments, data processing, video surveillance, for robotic applications, for machine vision systems, for electrical applications
Other characteristics
cost-effective
Memory
32 GB

Description

Automation PC NP-6123 / NP-6133 Series Compact Control Cabinet Industrial Automation PC with high performance processor Features Control Cabinet Industrial PC with DIN Rail & wall-mounting support for easy integration Supports Intel® Core™ 6th-8th Gen i7/i5/i3 / 10th-11th Gen i7/i5/i3 processors (Max. 65W TDP) 4 x GbE LAN for high-speed industrial networking and data communication 1 x RS232/RS485 (DB-9), selectable RS232 or RS485 mode, RS485 supports auto flow control Dual video output: VGA (1920×1080 @60Hz) & HDMI (3840×2160 @60Hz) for industrial HMI applications Wide-range DC12~24V power input with overcurrent, overvoltage, and polarity protection Fan-embedded aluminum chassis designed for continuous 24/7 operation in harsh environments The ONLY difference between NP-6123 and NP-6133 is: NP-6123 Support Intel® Core™ 6/7/8/9th Gen. i7/i5/i3/Pentium® /Celeron® LGA1151 type CPU NP-6133 Support Intel® Core™ 10/11th Gen. i9/ i7/i5/i3 LGA1200 type CPU NP-6123-MVS-L1 / NP-6133-MVS-L1 | Extension interface 1×Intel® GbE LAN controller(Occupies 1×miniPCIe slot) 1×RS485, RS485 support auto flow control 8×DI NPN/PNP, isolated 2500 Vrms 8×DO Transistor output, Imax:0.5A per channel, isolated 2500 Vrms 4×PWM Light power control with external trigger inputImax: 1A per channel 1×2.5" SATA SSD bay NP-6123-L2 / NP-6133-L2 | Extension interface 2×Intel® GbE LAN controller(Occupies 1×miniPCIe slot) 1×2.5" SATA SSD bay NP-6123-L4/NP-6133-L4 | Extension interface 4×Intel® GbE LAN controller(Occupies 2×miniPCIe slots) 1×RS485, RS485 support auto flow control 8×DI NPN/PNP, isolated 2500 Vrms 8×DO Transistor output, Imax:0.5A per channel, isolated 2500 Vrms 1×2.5" SATA SSD bay NP-6123-16I16O / NP-6133-16I16O | Extension interface 1×Intel® GbE LAN controller(Optional) 16×DI NPN/PNP, isolated 2500 Vrms 16×DO Transistor output, Imax:0.5A per channel, isolated 2500 Vrms NP-6123-MVS/NP-6133-MVS | Extension interface 1×RS485, RS485 support auto flow control 8×DI NPN/PNP, isolated 2500 Vrms 8×DO Transistor output, Imax:0.5A per channel, isolated 2500 Vrms 4×PWM Light power control with external trigger input, Imax: 1A per channel 1×2.5" SATA SSD bay NP-6123-MVS-L1/NP-6133-MVS-L1 | Extension interface 1×Intel® GbE LAN controller(Occupies 1×miniPCIe slot) 1×RS485, RS485 support auto flow control 8×DI NPN/PNP, isolated 2500 Vrms 8×DO Transistor output, Imax:0.5A per channel, isolated 2500 Vrms 4×PWM Light power control with external trigger inputImax: 1A per channel 1×2.5" SATA SSD bay NP-6123-HDD/NP-6133-HDD | Extension interface 1×2.5" SATA SSD bay
