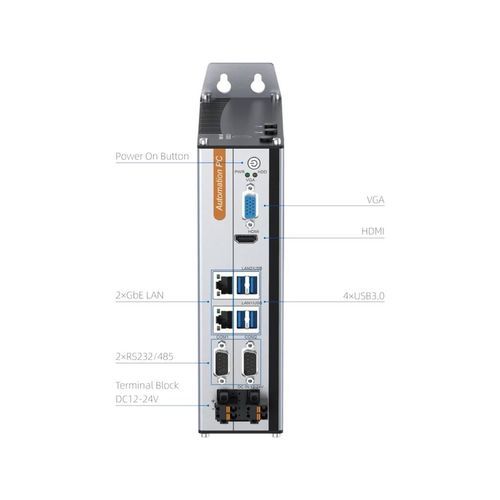

Box PC NP-6135 Ultra

wall-mountedVESA mountingIntel® Core™ Ultra

Product overview
Industrial automation PC powered by Intel® Core™ Ultra processors, offering dual Gigabit Ethernet, dual RS232/RS485 serial ports, versatile storage (mSATA + M.2 2280 SATA), HDMI and VGA outputs, Mini PCIe expansion and DC12~24V protected power input. Designed for wall-mount or DIN-rail installation in an aluminum‑magnesium alloy chassis with fan-assisted cooling.

Features

• Supports Intel® Core™ Ultra 125H and 255H CPUs with integrated Intel® Arc graphics and Intel® AI Boost
• 2 x Intel i210-AT GbE LAN for industrial networking and controller integration
• 2 x RS232/RS485 ports for field device and machine communication (up to 115.2 kbps)
• 4 x USB3.0 + 1 onboard USB2.0 Type-A for peripherals and USB dongles
• Dual display: VGA (up to 1920 x 1080@60Hz) and HDMI (up to 3840 x 2160@60Hz)
• Storage: 1 x mSATA and 1 x M.2 2280 KEY-B (SATA3.0)
• 1 x full-size Mini PCIe slot with SIM card holder for Wi‑Fi/3G/4G/CAN expansion
• DC12~24V input with overcurrent, overvoltage and reverse-polarity protection
• Flexible mounting: wall-mount or DIN‑Rail; rugged aluminum‑magnesium alloy chassis

Technical Specifications -- NP-6135 Ultra
Model: NP-6135-125H | NP-6135-255H
CPU: Intel® Core™ Ultra 125H (14C/18T) or 255H (16C/16T)
TDP: 28W
GPU / NPU: Intel® Arc graphics; Intel® AI Boost; Peak TOPS: 33 | 96
Memory: 2 x DDR5 SO-DIMM up to 96GB
Storage interfaces: 1 x mSATA (SATA3.0); 1 x M.2 2280 KEY-B (SATA3.0)
I/O: 2 x GbE (Intel i210-AT), 2 x RS232/RS485, 4 x USB3.0, 1 x USB2.0 onboard
Display: VGA 1080p60; HDMI 4K@60Hz
Expansion: Full-size Mini PCIe (SIM holder)
Power: DC12~24V ±10%, protections; Max consumption 90W
Chassis & Mounting: Aluminum‑magnesium alloy box with fan; Wall or DIN‑Rail
Dimensions: 200 x 150.5 x 57.6 mm; Weight: 1.9 kg
Operating: -20°C to 60°C (with airflow); Storage: -40°C to 80°C
Compliance: CE EMC, IEC/EN standards; Safety: IEC/EN 62368-1

Key specifications

• Model series: NP-6135 Ultra (125H, 255H)
• CPU options: Intel® Core™ Ultra 125H / 255H
• Memory: 2 x DDR5 SO-DIMM, up to 96GB
• I/O: 2 x GbE, 2 x RS232/RS485, 4 x USB3.0, onboard USB2.0
• Display: VGA (1080p) and HDMI (4K@60Hz)
• Expansion: Full-size Mini PCIe for wireless/CAN modules
• Power: DC12–24V input with protections; Max 90W
• Mounting: Wall or DIN‑Rail; fan-assisted cooling
