Box PC NP-6118 Series

embeddedwall-mountedDIN rail

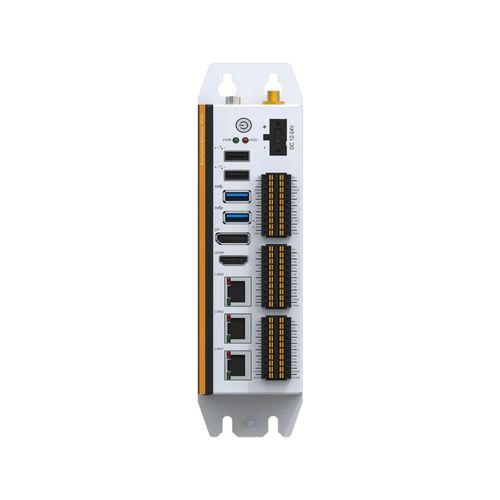

NP-6118-16I16OC | NP-6118-AMR | Fanless Automation PC with CAN Bus & Digital I/O

DESCRIPTION
The NP-6118 series is a compact fanless automation PC for AGV/AMR control, robotics and industrial automation. Based on Intel Celeron J1900 or J6412 processors, it combines three Gigabit Ethernet ports, industrial serial communication, high-density isolated digital I/O, optional CAN bus and selected models with integrated supercapacitor support.

Features

• Fanless Industrial PC with DIN Rail & wall-mounting support for automation applications
• Intel® Celeron J1900/J6412, low-power 10W TDP, quad-core processor for industrial performance
• Triple GbE LAN for reliable industrial networking
• 1 x RS232 & 2 x RS485 for industrial automation and communication
• 16 x DI, 16 x DO (Isolated 3750 Vrms, Imax 0.5A per channel) for industrial digital control applications
• 2 x CAN Bus 2.0 A/B for real-time communication in automation & motion control
• DP (4096×2160 @60Hz) & HDMI (1920×1080 @60Hz) for industrial HMI applications
• Mini-PCIe slot for 3G/4G module expansion
• Wide-range DC12~24V power input with overcurrent, overvoltage, and polarity protection
• Aluminum-magnesium alloy chassis, fully fanless for silent operation
• Compact and rugged design, optimized for control cabinets and automation

AVAILABLE CONFIGURATIONS

• NP-6118-16I16OC: confirmed public configuration with 16 DI, 16 DO and 2 CAN bus channels.
• NP-6118-AMR: current datasheet name for the AGV/AMR configuration with optional dual CAN and embedded supercapacitors; publish only after the suffix is approved.
