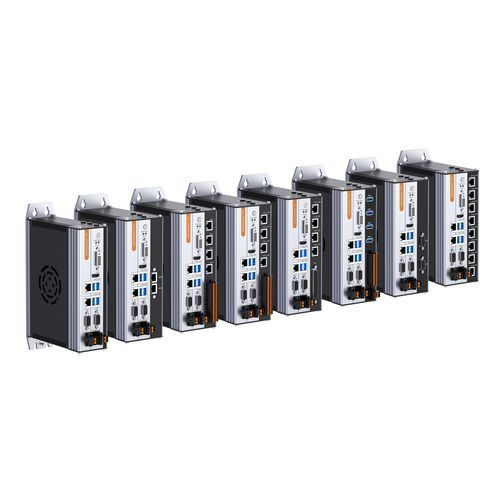

Box PC NP-61X2 Series
embeddedwall-mountedDIN rail

Box PC - NP-61X2 Series - NODKA Automation Technology - embedded / wall-mounted / DIN rail
Box PC - NP-61X2 Series - NODKA Automation Technology - embedded / wall-mounted / DIN rail
Box PC - NP-61X2 Series - NODKA Automation Technology - embedded / wall-mounted / DIN rail - image - 2
Box PC - NP-61X2 Series - NODKA Automation Technology - embedded / wall-mounted / DIN rail - image - 3
Box PC - NP-61X2 Series - NODKA Automation Technology - embedded / wall-mounted / DIN rail - image - 4
Box PC - NP-61X2 Series - NODKA Automation Technology - embedded / wall-mounted / DIN rail - image - 5
Box PC - NP-61X2 Series - NODKA Automation Technology - embedded / wall-mounted / DIN rail - image - 6
Box PC - NP-61X2 Series - NODKA Automation Technology - embedded / wall-mounted / DIN rail - image - 7
Box PC - NP-61X2 Series - NODKA Automation Technology - embedded / wall-mounted / DIN rail - image - 8
Box PC - NP-61X2 Series - NODKA Automation Technology - embedded / wall-mounted / DIN rail - image - 9
Box PC - NP-61X2 Series - NODKA Automation Technology - embedded / wall-mounted / DIN rail - image - 10
Box PC - NP-61X2 Series - NODKA Automation Technology - embedded / wall-mounted / DIN rail - image - 11
Box PC - NP-61X2 Series - NODKA Automation Technology - embedded / wall-mounted / DIN rail - image - 12
Box PC - NP-61X2 Series - NODKA Automation Technology - embedded / wall-mounted / DIN rail - image - 13
Box PC - NP-61X2 Series - NODKA Automation Technology - embedded / wall-mounted / DIN rail - image - 14
Box PC - NP-61X2 Series - NODKA Automation Technology - embedded / wall-mounted / DIN rail - image - 15
Add to favorites
Compare this product
Go to the NODKA Automation Technology website for more information

Characteristics

Type
box
Configuration
embedded, wall-mounted, DIN rail
Processor
Intel® Celeron®, Intel® Pentium, 6th generation Intel® Core™, 8th Generation Intel® Core™, 11th Generation Intel® Core™, 9th Generation Intel® Core™, 7th Generation Intel® Core™ i7, 10th generation Intel® Core™, 7th Generation Intel® Core i7-8565U, 8th generation Intel® Core™ i3, 8th generation Intel® Core™ i5, 8th generation Intel® Core™ i7
Ports
HDMI, VGA, DVI, DDR4 SO-DIMM, USB 2.0, RS-232, USB 3.0, RS-485, Mini PCIe, CAN bus
Data storage
SSD 128GB, SSD 256GB, SSD 512GB, SSD 1TB, SSD 64GB, SSD 32GB, 32 GB, 64 GB
Operating system
Linux, Linux® Ubuntu™, Windows 10
Size
compact
Domain
automation, industrial, for IoT applications, machine vision, for harsh environments, for automation applications, video surveillance, data processing, for robotic applications, for machine vision systems, for electrical applications
Other characteristics
modular, cost-effective
Memory
32 GB, 8 GB, 16 GB

Description

NP-6122 / NP-6132 | Control Cabinet Industrial Automation PC

The NP-6122 series is a modular control-cabinet automation PC based on Intel 6th to 8th Gen Core, Pentium and Celeron LGA1151 processors. It is designed for machine vision, industrial control, AGV/AMR, intelligent transportation and edge applications requiring configurable PoE, digital I/O, serial communication, CAN bus, USB and industrial Ethernet interfaces.

The NP-6132 series is a high-performance modular control-cabinet automation PC powered by Intel 10th and 11th Gen Core LGA1200 processors. It combines desktop-class computing with configurable PoE, isolated digital I/O, light control, serial communication, CAN bus, USB and industrial Ethernet for machine vision and advanced automation projects.

Features
  • Control Cabinet Industrial PC with DIN Rail & wall-mounting support for easy integration
  • Supports Intel® Core™ 6th-8th Gen i7/i5/i3 / 10th-11th Gen i7/i5/i3 processors (Max. 65W TDP)
  • 2 x Intel GbE LAN for industrial networking and high-speed communication
  • 2 x RS232/RS485 (DB-9), selectable RS232 or RS485 mode, RS485 supports auto flow control
  • Dual video output: DVI-D (1920×1080 @60Hz) & HDMI (3840×2160 @60Hz) for industrial HMI applications
  • Wide-range DC12~24V power input with overcurrent, overvoltage, and polarity protection
  • Fan-embedded aluminum chassis designed for continuous 24/7 operation in harsh environments

AVAILABLE CONFIGURATIONS
  • NP-6122/NP-6132: standard industrial automation configuration.
  • NP-6122/NP-6132-H1 / H1B / H1BP: PoE and isolated digital-I/O configurations for vision control.
  • NP-6122/NP-6132-JH2 / JH2B / JH3: machine-vision configurations with PoE, digital I/O, lighting control or expanded USB.
  • NP-6122/NP-6132-JH4 / JH5: extended serial and mixed digital/relay-output configurations.
  • NP-6122/NP-6132-H7 / H7B: high-density USB machine-vision configurations with isolated digital I/O.
  • NP-6122/NP-6132-8PoE: eight-port Gigabit PoE configuration.
  • NP-6122/NP-6132-CAN2: dual CAN 2.0 A/B configuration.
  • NP-6122/NP-6132-L2: four-LAN industrial networking configuration.
