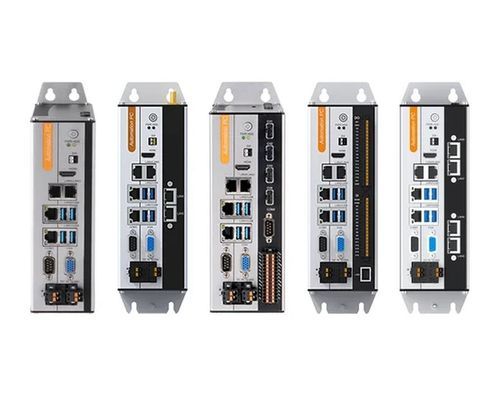

Box PC NP-6133 series

embeddedwall-mountedDIN rail

NP-6123 / NP-6133 /NP-6143 | Control Cabinet Industrial Automation PC
Industrial automation PC with Intel® Core™ CPUs, 4 x GbE, RS232/RS485, 4 x USB3.0, mSATA, HDMI/VGA, Mini PCIe expansion, and DC12~24V input.

DESCRIPTION
The NP-61X3 series is a modular and expandable industrial automation PC family covering multiple Intel processor generations. The NP-6123 supports Intel 6th to 8th Gen Core, Pentium and Celeron LGA1151 processors; the NP-6133 supports Intel 10th and 11th Gen Core LGA1200 processors as well as selected Intel Core Ultra configurations; and the NP-6143 supports Intel 12th, 13th and 14th Gen Core LGA1700 processors.

Built on a four-Gigabit Ethernet base platform, the series can be configured for machine vision, data acquisition, edge control, industrial networking, CAN communication, additional storage and high-density digital I/O. Its fanless design supports wall-mounted or DIN-rail installation in industrial control cabinets.

Features

• Supports Intel® Core™ 6th/7th/8th Gen, 10th/11th Gen, and 12th/13th/14th Gen processors
• 4 x Intel i210-AT GbE LAN for industrial networking and controller integration
• 1 x RS232/RS485 serial port for field device communication
• 4 x USB3.0 plus 1 x onboard USB2.0 Type-A for dongle use
• Dual display outputs with VGA and HDMI
• 1 x mSATA storage with SATA3.0 interface
• 2 x full-size Mini PCIe expansion slots for Wi-Fi, 3G, or 4G modules
• DC12~24V input with overcurrent, overvoltage, and reverse-polarity protection
• Wall-mount or DIN-Rail installation for control cabinet deployment
• Aluminum-magnesium alloy chassis with embedded fan-assisted cooling

AVAILABLE CONFIGURATIONS

• NP-6123: Intel 6th to 8th Gen LGA1151 platform
• NP-6133: Intel 10th and 11th Gen LGA1200 platform
• NP-6133 Ultra / NP-6133 Ultra MVS: Intel Core Ultra configurations for edge-AI and machine-vision applications
• NP-6143: Intel 12th, 13th and 14th Gen LGA1700 platform
• NP-61X3-MVS / MVS-L1 / MVS-L4: machine-vision configurations with digital I/O, selected light-control functions and expanded Ethernet connectivity
• NP-61X3-16I16O: high-density configuration with 16 digital inputs and 16 digital outputs
• NP-61X3-HDD: configuration with additional 2.5-inch storage
• NP-61X3-CAN2 / CAN4: configurations with two or four CAN communication channels
• NP-61X3-L2 / L4: industrial networking configurations with six or eight LAN interfaces
• 61X3-COM2 / COM4: serial-port expansion configurations adding two or four COM ports configurable for RS232 or RS485
