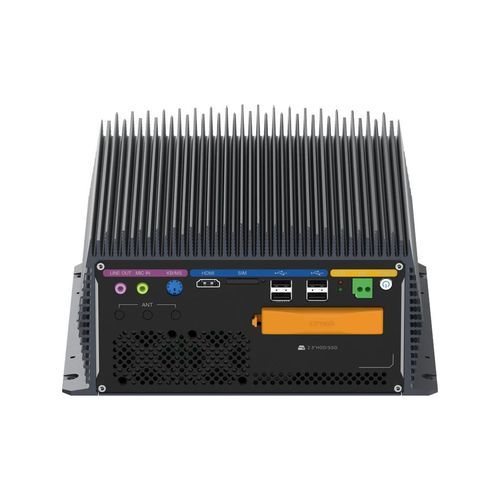

Expansion PC eBOX-3000H-S series

boxdesktopIntel® Pentium

Overview
Fanless box PC supporting Intel® 12th/13th/14th Gen Celeron/Pentium/Core™ i-series processors (TDP up to 65W). Features 2× Intel GbE, 6× COM ports (4× RS-232 + 2× RS-232/RS-485), dual display support (VGA/DVI/HDMI), expandable via PCIe x16 (SE) or 2× PCI (SP), M.2 + SATA storage, mini PCIe for wireless modules, M.2 Key-B for 5G expansion, and wide-range DC 12–24V input.

Key features

• Fanless aluminum chassis designed for 24/7 industrial operation
• Supports Intel® 12th/13th/14th Gen Celeron/Pentium/Core™ i-series (TDP up to 65W)
• 2 × Intel Gigabit Ethernet (GbE) LAN ports
• 6 × serial ports: 4 × RS-232 (COM1–4) + 2 × RS-232/RS-485 (COM5–6)
• Dual display support via VGA + HDMI + DVI (asynchronous dual display)
• Expansion-ready: PCIe x16 (SE) or 2 × PCI (SP) for add-on cards
• Mini PCIe slot(s) for Wi‑Fi / 4G modules; M.2 Key-B slot for 5G module expansion
• Storage: M.2 (2242/2280) SATA + SATA3.0 (up to 6Gb/s)
• USB: 4 × USB3.0 and 4 × USB2.0
• Wide-range DC input: DC 12–24V suitable for control cabinet power systems

Features (additional)

• AMI UEFI BIOS (128Mbit)
• Intel H610 chipset
• 2 × 260-pin DDR4 3200MHz SO-DIMM slots, up to 64GB
• Programmable watchdog timer (1–255 levels)
• OS support: Windows 10, Windows 11, Linux

Specifications

• Model name: eBOX-3000H-SE (SE) / eBOX-3000H-SP (SP)
• CPU: Intel® 12th/13th/14th Generation Celeron/Pentium/Core™ series, TDP up to 65W
• BIOS: AMI UEFI 128Mbit
• Chipset: Intel H610
• Memory: 2 × 260-pin DDR4 3200MHz SO-DIMM slots, up to 64GB
• Storage: 1 × M.2 2242/2280 Key-M (SATA3.0 up to 6Gb/s); 1 × SATA3.0 (up to 6Gb/s)
• USB: 4 × USB3.0, 4 × USB2.0
• COM: 4 × RS-232 (COM1–4); 2 × RS-232/RS-485 (COM5–6)
• Expansion slots (SE): 1 × PCIe x16; 1 × Mini PCIe (Wi‑Fi/4G); 1 × M.2 Key-B (5G expansion)
• Expansion slots (SP): 2 × PCI; 1 × Mini PCIe (Wi‑Fi/4G); 1 × M.2 Key-B (5G expansion)
• LAN: 2 × Intel GbE LAN
• VGA: Up to 1920 × 1200 @60Hz; supports asynchronous dual display
• HDMI: Up to 4096 × 2160 @30Hz; supports asynchronous dual display
• DVI: Up to 1920 × 1200 @60Hz; supports asynchronous dual display
• Watchdog: 1–255 levels programmable
• OS Support: Windows 10, Windows 11, Linux
• Power Input: DC 12–24V
• Chassis dimensions (L×W×H): 242 mm × 240 mm × 117.73 mm
• Net weight: 4.7 kg
• Operating temperature: -20°C to 60°C (use SSD)
• Storage temperature: -40°C to 80°C (use SSD)
• Relative humidity: 5–95% RH @40°C, non-condensing
• Vibration (SSD applied): 1.5 Grms, IEC 60068-2-64, random, 5–500Hz, 1 hr/axis
• Shock (SSD applied): 10G, IEC 60068-2-27, half sine, 11 ms
• EMC: CE / FCC Class A
• Ordering / Part numbers: B63.3000H.SE.0001 — eBOX-3000H-SE (no CPU, H610, 1× PCIe); B63.3000H.SP.0001 — eBOX-3000H-SP (no CPU, H610, 2× PCI)
• Optional configurations / accessories: DDR4 memory options: 4GB, 8GB, 16GB; 2.5" SSD options: 128GB, 256GB, 512GB; M.2 SSD options: 512GB, 1TB; 4G module (Mini PCIe): EC20, EG25, EC25
