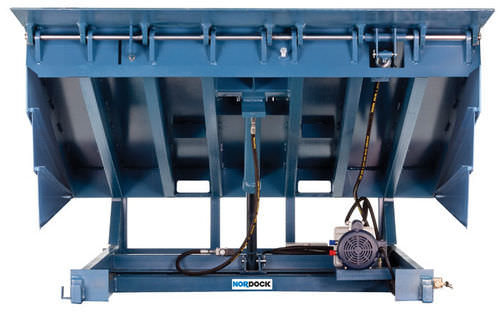

Hydraulic dock leveler HEAVY-DUTY™ series

he NORDOCK HEAVY-DUTY™ Series Hydraulic Dock Levelers are the ultimate in strength, convenience and reliability. The platform is a unitized welded structure with continuous welds at the beam, header plate and lugs for maximum strength. The deck plate, lip plate, beam sections and lugs are constructed of minimum 50-55,000 PSI yield material. Standard center deck beam and welded side guards provide additional deck plate support. The continuous rear hinge provides side-to-side tilt with no pinch point. Hydraulic power for smooth, efficient operation The power unit is a frame mounted integral assembly fully tested and oil filled. The motor is a totally enclosed non-ventilated type available in all voltages. Regenerative hydraulic cylinders are a heavy-duty design with polished chrome rods, guide bearings and high-pressure seals. Easy one-step push button control The operator presses the control button until the deck is raised and the lip is fully extended. Releasing the button allows the lip to lower onto the truck bed. The operator stores the leveler by pressing the control button until the lip fully retracts.
