Visualization software DataFusion

monitoringdata acquisition and analysisdata acquisition

Overview
DataFusion collects thickness, weight, moisture and coat-weight measurements from film extrusion, coating and lamination lines and forwards them to an SQL database for storage and analysis. Measurements can be fixed-point or scanning. Real-time and historical visualizations enable rapid assessment of product quality and correlation of process variables to accelerate decision-making and improve production efficiency.

Features & Benefits

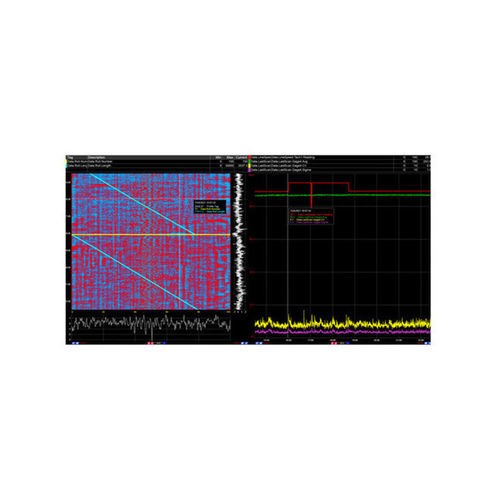

• 2D profile and trend heatmap for spatial and temporal analysis
• Profile scan display with overlay and comparison
• Drag-and-drop interface and right-click menus for efficient operation
• Time-axis dragging and time-synced multi-trend templates
• Unlimited trend traces and customizable display options

Supported Sensors

• FilmPro - Infrared Thickness Gauge

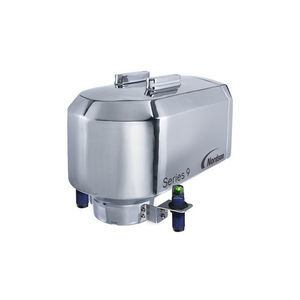

• Series 9 - Moisture & Coat Weight Gauge
• GBS - Gamma Thickness Gauge
• Photon - Electrode Coat Weight Gauge
• OptiMike - Optical Thickness Gauge

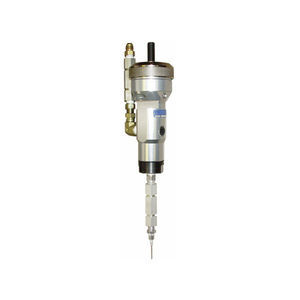

• 003 Series Volume Metering Valves and other Nordson measurement devices

Integration & Data Handling
DataFusion pipes measurements to an SQL database, accepts fixed-point and scan data, and provides synchronized multi-dimensional visualizations and exportable historical datasets for reporting and analysis. Modular architecture enables scalable deployment across multiple lines and sites and simplifies integration with process control systems.

Technical Specifications

• Data types: thickness, weight, moisture, coat weight
• Measurement modes: fixed-point and scanning
• Database: SQL (measurements stored and queryable)
• Visualizations: real-time and historical; 2D heatmaps; profile scan display; multi-trend templates; unlimited traces
• User interface: modular, intuitive, drag-and-drop, right-click menus, time-axis dragging
• Scalability: modular architecture for easy expansion across lines/sites
• Compatibility: integrates with Nordson measurement sensors and third-party data sources
