Non-contact gauge 9

stationarycontinuousmulti-parameter

Overview

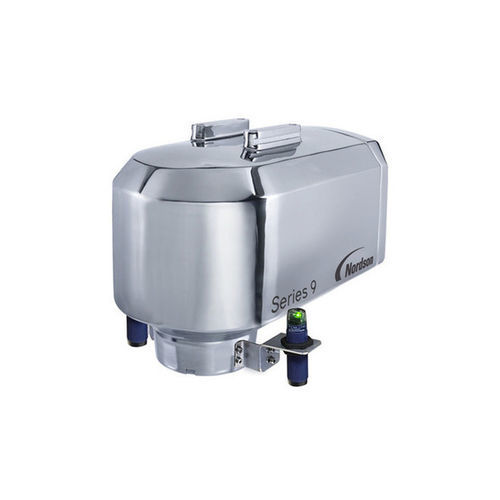

The Series 9 converting gauge measures moisture, coat weight and film/layer thickness for converting processes. It is configurable to match extrusion, coating and lamination lines and is mounted over the process line for continuous inline measurement. Standard beam patch diameter is 25 mm with 10 mm and 60 mm options. Nominal mounting distance is 200 mm above mean product height; product height fluctuations up to ±50 mm are tolerated.

Coating measurement capabilities

• Water-based coatings
• Solvent-based coatings
• Solventless coatings
• Barrier coatings
• Resin coatings
• Wax dip
• Impregnation
• Polymer extrusion
• Hot melt adhesives

Features & Benefits

• Improved process visibility for control and setpoint verification
• Stable long-term measurement performance
• Advanced diagnostic tools for uptime and maintenance
• Designed for low operational cost and integration

Applications

• Industrial materials
• Flexible packaging
• Liquid packaging
• Textiles (polyurethane, latex, silicone, PVC)
• Coils and metal foil (steel, copper, aluminum)
• Optical films (PDP, LCD)
• Window and glazing films
• Paper
• Label stock
• Polymer films (adhesive labels, tapes, transdermal patches, laminating pouches, protective films, PVDC)
• Abrasives

Technical specifications

• Measured parameters: moisture, coat weight, film/layer thickness
• Standard beam patch diameter: 25 mm (optional: 10 mm or 60 mm)
• Typical mounting: suspended over process line at nominal 200 mm from mean product height
• Product height fluctuation tolerance: ±50 mm
• Configurable for a wide range of converting process setups (extrusion, coating, lamination)
