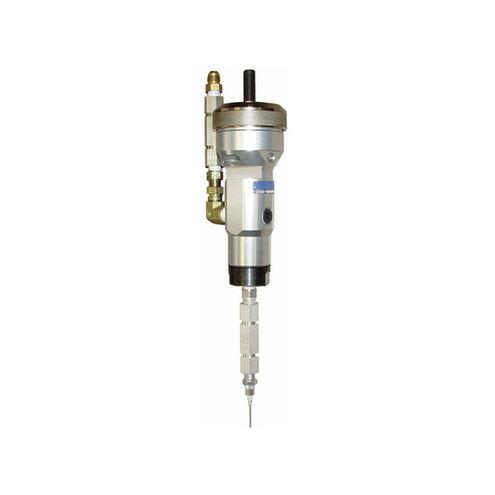

Volumetric dispensing valve 003

precisionhigh-accuracylow-viscosity product

Overview
The 003 Series Volume Metering Valves are positive-displacement volume metering valves engineered to dispense low‑viscosity, pourable, abrasive or filled materials in small-shot and high‑flow applications. Dispense shot size: 0.2 cc to 2.0 cc.

Benefits

• Longer lifespan
  • Hardened metering rod is designed not to contact the cylinder wall, reducing wear and lowering preventive maintenance when dispensing abrasive or filled materials.
• Quality dispensing
  • Positive-rod displacement metering combined with servo drive integration delivers highly accurate shot control.
• Exact consistency
  • Integrated check valves prevent material bypass and ensure repeatable dispensing precision.

Product Data

• Dry weight (standard aluminum body): 3 lb (1.36 kg)
• Viscosity range: liquid to paste
• Valve height: 12.56 in (31.9 cm)
• Valve diameter: 3.03 in (7.7 cm)
• Dispense shot size: 0.2 cc to 2.0 cc

Technical Specifications

• Type: Positive-displacement volume metering valve
• Material handling: Low-viscosity, pourable, abrasive or filled materials; suitable for high-flow applications
• Metering mechanism: Hardened metering rod with integrated check valves to prevent bypass
• Drive/Control: Designed for integration with servo drive technology for precise shot control
• Shot volume range: 0.2 cc – 2.0 cc
• Physical dimensions: Height 12.56 in (31.9 cm); Diameter 3.03 in (7.7 cm)
