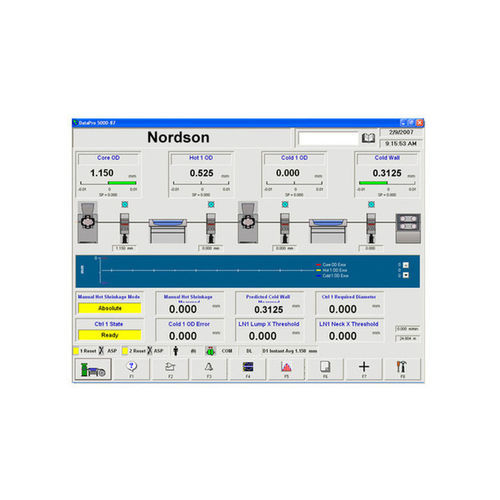

Monitoring software DataPro

data acquisitioncontroldata management

Overview
The DataPro family provides process control software with integrated data management for wire, cable, hose and tube manufacturing. It captures product and process data from Nordson gauges in real time to support process control, monitoring and quality documentation.

Product variants

• DataPro 5000 — Process controller and data management system with a configurable color touchscreen and graphical overview of product dimensions and process parameters; intended for operators, supervisors, process engineers and plant managers.
• DataPro 3100 — Mid-range process controller with integrated data management and bright color touchscreen for line use; compact footprint with extensive control functions.
• DataPro 1000 — Economical process controller and diameter indicator with self-tuning controller display for efficient capture of product diameter measurements.
• DataPro 700Plus — Multi-function system that displays length, velocity, quality factor and gauge status from the LaserSpeed Pro gauge.

Features & Benefits

• Real-time capture of product and process measurements from Nordson gauges during production.
• Closed-loop feedback support for process optimization and consistent product quality.
• Live cross-sectional views to speed die-centering adjustments and reduce start-up time, downtime and scrap.
• SPC and trend reporting for process analysis and quality documentation.
• Configurable user interface to present role-relevant information to operators, supervisors and engineers.

Recommended additions to your process line

• AccuScan 5000 (two-axis diameter gauge)
• AccuScan 6000 (four-axis diameter gauge)
• AccuScan Pro (single-axis diameter gauge)
• BenchMike Pro (sample inspection micrometer)
• CapScan 2000 (capacitance gauge)
• CenterScan 2010 (eccentricity gauge)
• InControl (process control software)
• LaserSpeed Pro (length & speed gauge)
• LN3000 (lump and neckdown gauge)

Technical specifications

• Family: DataPro
• Main function: Process control software with integrated data management for manufacturing lines
• Interfaces: Configurable color touchscreen user interface (model dependent)
• Data capability: Real-time capture from Nordson gauges; SPC and trend reporting
• Control capability: Closed-loop feedback for process optimization
• Typical applications: Wire, cable, hose and tube manufacturing — diameter, eccentricity, length, speed and quality monitoring
• Variants: DataPro 5000, 3100, 1000, 700Plus
