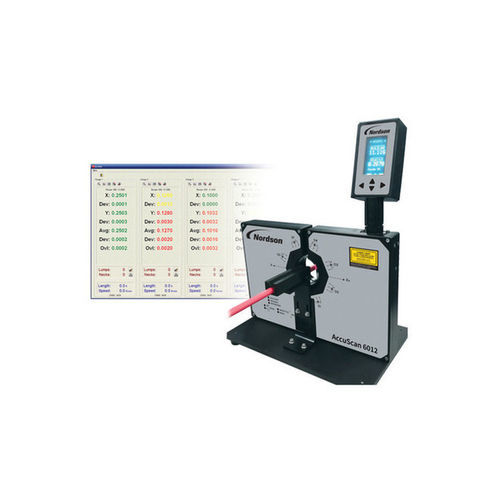

Visualization software AccuNet™

monitoringdata acquisition and analysisdata management

Overview
AccuNet™ is supervisory networking software that centralizes monitoring and management of multiple cable & tube laser gauges from a single PC. The application provides real-time SPC and trend analysis across multiple Nordson gauges, enabling operators to detect deviations quickly, take corrective action and reduce scrap and downtime. Supports connection to gauges via USB or Ethernet and manages up to 4 AccuScan 5000/6000 diameter gauges per instance.

Features & Benefits

• Centralized data acquisition and monitoring for an entire work cell.
• Menu-driven Windows™ interface for simplified operator interaction and fast setup.
• Recipe storage and recall to speed reconfiguration for different product types.
• Data logging and export to Microsoft® Excel for audit trail and detailed process analysis.
• Color trend displays and real-time SPC provide immediate visualization of process variation.

Recommended Additions to Your Process Line

• LaserSpeed Pro — Length & speed gauge
• AccuScan 5000 — Dual-axis diameter gauge
• AccuScan 6000 — Four-axis diameter gauge
• AccuScan Pro — Single-axis diameter gauge
• TrueWall — Ultrasonic wall/diameter measurement
• BenchMike Pro — Sample inspection micrometer
• Smart Temp — Preheater
• LN3000 — Lump and neckdown/profile gauge
• CapScan 2000 — Capacitance gauge
• CenterScan 2010 — Eccentricity gauge
• Z-Mike Pro — Part inspection micrometer

Technical specifications

• Commercial name: AccuNet™
• Application: Supervisory networking software for multi-gauge cable & tube laser gauging installations.
• Monitored data: Real-time SPC and trend analysis from multiple diameter/laser gauges.
• Maximum gauges supported: Monitor up to 4 AccuScan 5000 / AccuScan 6000 gauges from one PC.
• Connectivity: Gauges connect to PC via USB or Ethernet.
• Operating environment: Windows-based, menu-driven interface.
• Data export: Logging and export to Microsoft® Excel for audit trail and analysis.
• Key capabilities: Recipe storage & recall, centralized data acquisition, color trend displays, real-time alerts to support corrective action.
