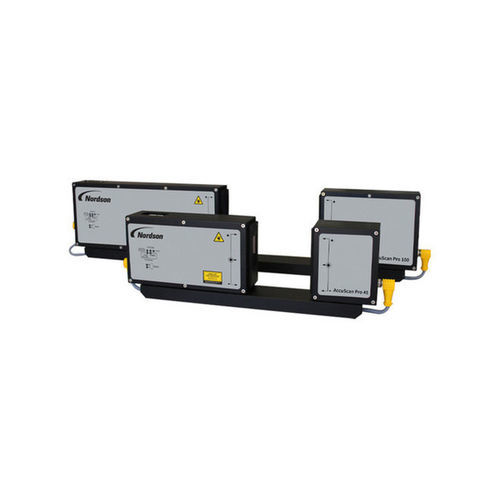

Concentricity gauge AccuScan Pro series

automaticcomputerizedfor cables

Overview
Built on a proven optical engine and electronics platform, AccuScan Pro is a compact single-axis laser diameter gauge for wire, cable, tube, hose and other cylindrical, flat or unique profile products. It is suitable for inline real-time diameter control or stand-alone offline measurement. The gauge measures diameters up to 100 mm (3.94 in) and can be stacked to cover larger diameters. The design provides high-accuracy measurement with low maintenance for industrial environments.

Features & Benefits

• High-accuracy measurements regardless of product position within the measuring gate.
• Engineered optics and calibrated measurement techniques for consistent accuracy.
• Rail design allows flexible spacing between transmitter and receiver heads.
• Optional air purge system to keep optical windows clean and reduce maintenance.
• Flexible communications supporting RS-232 and Ethernet for process integration.
• Optional ultra-bright display and operator interface for configuration and data viewing.
• Color-coded LED status indicators for quick monitoring of gauge operation and communications.
• IP65-rated housings to protect against moisture and dust.

Two Models Available
Model | AccuScan Pro 45 mm | AccuScan Pro 100 mm
OD Range | 0.13 – 45 mm (0.005 – 1.77 in) | 0.2 – 100 mm (0.008 – 3.94 in)
Gate Size | 52 mm (2.05 in) | 106 mm (4.17 in)
Accuracy | ±0.001 mm (45 mm model) | ±0.002 mm (100 mm model)
Resolution | 0.00001 mm (both models) | 0.00001 mm (both models)
Scan Rate | 1200 scans/sec | 1200 scans/sec

Optional & Application Notes

• MultiScan option supports 100% online inspection of multi-strand wire and can measure up to 12 wire diameters simultaneously to detect missing or broken strands.
• Single-scan flaw detection option for lumps and neckdowns (application-dependent).
• Gauges can be stacked (two or more) to extend the measurable diameter range.
• Designed for cord, rubber and plastic hose, plastic pipe and tube, rods, wire and cable, and other extruded or drawn products.

Technical Specifications

• Models: AccuScan Pro 45 mm and AccuScan Pro 100 mm.
• OD measurement range: 0.13–45 mm (45 mm model); 0.2–100 mm (100 mm model).
• Gate size: 52 mm (45 mm model); 106 mm (100 mm model).
• Accuracy: ±0.001 mm (45 mm model); ±0.002 mm (100 mm model).
• Resolution: 0.00001 mm (0.0000004 in).
• Scan rate: 1200 scans/sec.
• Optional features: MultiScan multi-strand software, single-scan lump/neckdown detection, ultra-bright operator display, air purge.
• Communications: RS-232 and Ethernet; flexible protocol support for integration.
• Enclosure rating: IP65.
• Typical applications: wire, cable, tube, hose, pipe, rods, extrusion and drawing processes.
