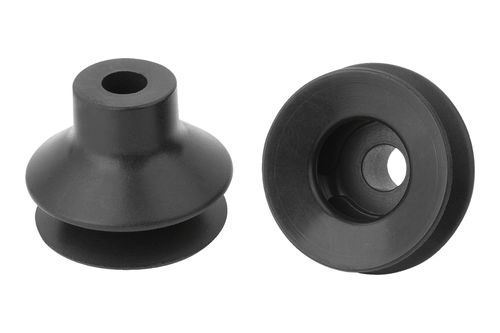

Bellows suction cup 90037

roundnitrile60 shore A

Bellows suction cups, round, 1.5 folds with separate fastening Material NBR nitrile Shore 60A. Version black. Note Universal bellows suction cups for handling flat, rigid and smooth products. Quick and cost-effective replacement of worn suction cups via separate fasteners. Order fasteners separately. Technical Data Forces F1 and F2: The forces specified in the table refer to a 65% vacuum, taking into account a 2x safety factor for horizontal grasping (F1). 4x for vertical grasping (F2). Internal volume: Corresponds to the volume that must be evacuated during the suction cycle. This volume must be taken into account for the total volume of the grasping system and thus by calculating the suction duration. Temperature range -25°C to +120°C. Permanent temperature resistance 0 °C to 90 °C. Accessory Fasteners 90100.
