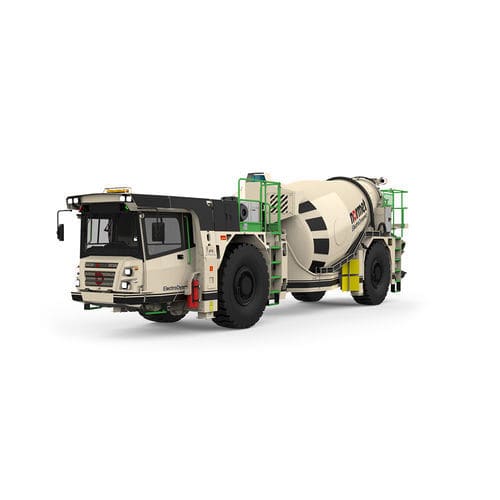

Electric concrete mixer UTIMEC XL 1100 AGITATOR ED

mobilefor underground mining

Overview
The Utimec XL 1100 Agitator ED offers a practical carrying capacity of 10.5 m³ and is engineered for concrete transportation in underground mines and tunnels with a required tramming height of 3.3 m or more. Built on the low-emission Normet ElectroDynamic® platform with direct-drive electric motors, the XL 1100 Agitator ED supports more sustainable underground operations. The machine integrates a voluminous, wear-resistant, remote-controllable concrete drum and a hydraulically operated discharging chute for flexible positioning. Optional front and rear hydraulic support legs provide enhanced stability during discharge.

Key specification

• Concrete agitator
• Carrying capacity: 10.5 m3
• Tramming height requirement: 3.3 m

Features
Safety

• FOPS/ROPS approved cabin
• Improved visibility with maximized window area and heated wide-angle mirrors
• Cabin door interlock switches with automatic safety brake application as standard
• Optional reversing camera system for superior rear visibility
• SAHR fail-safe safety brakes

Sustainability

• High-efficiency powertrain architecture with direct-drive electric motors (Normet ElectroDynamic® platform)

Ergonomics and operator environment

• New Normet cabin designed for operator ergonomics and safety
• Advanced front axle suspension system
• Optional air conditioning and cabin heating
• Low noise levels
• One-pedal driving for simplified control
• Multifunctional display with key driving information
• Air-suspended T-back driver’s seat with 3-point seat belt

Productivity and efficiency

• Wear-resistant, remote-controllable concrete drum
• Grid connection option for electrically operated mixing and unloading
• Manual drum locking system
• Hydraulically operated discharging chute
• 500 l on-board water tank with hydraulically driven pump
• Optional form oil system with 30 l tank for easier cleaning
• Optional accelerator transfer system with 300 l tank and hydraulic pump
• Optional emergency drum emptying
• Optional additional oil cooler for drum rotation
• Optional braking resistor
• Optional hydraulic front and rear support legs

Characteristics / technical specifications

• Model: Utimec XL 1100 Agitator ED
• Type: Concrete agitator for underground use and tunnels
• Carrying capacity: 10.5 m³
• Tramming height requirement: 3.3 m or more
• Platform / Powertrain: Normet ElectroDynamic® platform, direct-drive electric motors
• Concrete drum: Voluminous, wear-resistant, remote-controllable; manual drum locking; optional emergency emptying
• Discharge: Hydraulically operated discharging chute
• On-board water tank: 500 l with hydraulically driven pump
• Optional systems: form oil system (30 l), accelerator transfer system (300 l), additional oil cooler for drum rotation, braking resistor, hydraulic front and rear support legs
• Cabin: FOPS/ROPS approved, heated wide-angle mirrors, cabin door interlock with safety brake application
• Visibility: Optional reversing camera
• Brakes: SAHR fail-safe safety brakes
• Operator aids: One-pedal driving, multifunctional display, air-suspended T-back driver’s seat with 3-point seat belt
• Suspension: Advanced front axle suspension system
• Grid connection option for electrically operated mixing and unloading
