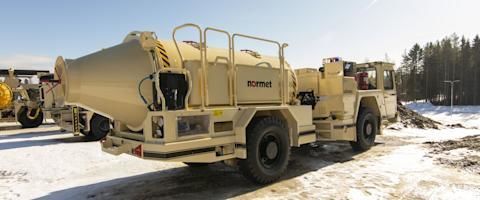

Underground mining mixer truck Utimec MF 500

diesel enginelow CO2 emissions

Overview
Utimec MF 500 Transmixer with a practical concrete carrying capacity of 4.4 m3 is designed for concrete transportation in underground mines and tunnels with a tramming height of 2.4 meters or more. Equipped with a robust concrete drum with hydraulically controlled mixing and unloading and a manual drum locking system, the vehicle features a FOPS/ROPS approved cabin and standard safety equipment. Logistics is an integral part of sprayed concrete operations: transporting concrete from the batching plant to the work area safely and efficiently is essential.

Key specification

• Concrete transmixer
• Carrying capacity: 4.4 m3
• Tramming height requirement: 2.4 m or more

Safety

• FOPS/ROPS approved cabin
• Cabin door interlock switches with safety brake application as standard
• Optional reversing camera system for improved rear visibility
• SAHR fail-safe safety brakes

Sustainability

• Available with low-emission Stage V engine technology

Ergonomics and operator environment

• Cabin designed with operator ergonomics and safety as priorities
• Optional front axle suspension for increased comfort
• Air-suspended T-back driver’s seat with 3-point seat belt
• Multifunctional display providing key driving and machine information

Productivity and efficiency

• Robust concrete drum with hydraulically controlled mixing and unloading
• Manual drum locking system
• Drum rotation speed adjustable 0–13 RPM
• Adjustable drum discharge height: 1450–2000 mm
• Optional hydraulically-operated discharging hatch
• Optional remote controller for the concrete drum
• Optional form oil system (30 l) and optional accelerator transfer system (250 l with hydraulic pump)
• Optional emergency drum emptying, oil cooler for drum rotation and hydraulic drum brake
• Optional drum lifting lock, retarder, hydraulic front support legs and pressure washer (230 l)

Technical specifications

• Carrying capacity: 4.4 m3
• Tramming height requirement: ≥ 2.4 m
• Drum rotation speed: adjustable 0–13 RPM
• Adjustable drum discharge height: 1450–2000 mm
• Hydraulically controlled mixing and unloading
• Manual drum locking system
• FOPS/ROPS approved cabin
• Optional systems: reversing camera, hydraulically-operated discharging hatch, remote drum controller, form oil system (30 l), accelerator transfer system (250 l), emergency drum emptying, oil cooler, hydraulic drum brake, drum lifting lock, retarder, hydraulic front support legs, pressure washer (230 l)
• Engine options including low-emission Stage V technology
