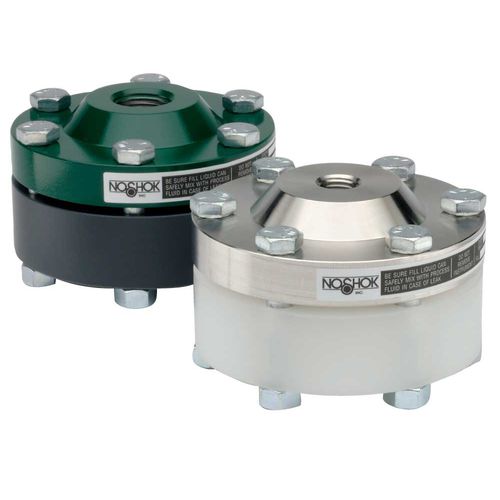

Diaphragm seal with flange connection 30L

for pressure gaugesprocess

Designed for applications where typical metallic lower housings cannot withstand process media Can be used for remote mounting of pressure instrument(s) with capillary, see options & accessories below Utilizes an all metallic diaphragm welded to the upper housing to allow replacement of the non-metallic lower housing while maintaining continuity of the measuring system Consider instrument size, pressure range, media composition, ambient and operating temperature, and maximum working pressure when selecting Fill fluid must be compatible with process media; i.e. Glycerin may become volatile in conjunction with a strong oxidizing agent such as chlorine, forms of oxygen or peroxide and nitric acids Seal type - Threaded with welded diaphragm (Flanged available on request) Instruments - Type - Size - Minimum Pressure - Maximum Pressure Gauges - 2-1/2" to 6" - 0 psig to 30 psig - 0 psig to 200 psig Transducers - — - 0 psig to 30 psig - 0 psig to 200 psig Switches - — - 0 psig to 30 psig - 0 psig to 200 psig
