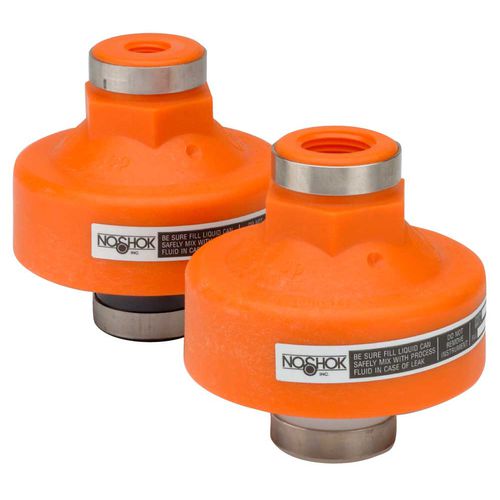

Diaphragm seal with flange connection 5

for pressure gaugeschemical

Type 5 All Non-Metallic, Non- For wastewater and chemical feed applications, as well as most applications with a corrosive media Constructed of corrosion-resistant PP glass fiber reinforced upper housing and PP, PVC or PVDF lower housing Protects pressure or vacuum instruments used on ultra-pure or highly corrosive fluid lines such as demineralized water, sulfuric acid, hydrochloric acid, and caustics PTFE coated EPDM diaphragms are standard on all assemblies 100% non-metallic wetted parts assures maximum chemical and temperature compatibility Diaphragm Seals For wastewater and chemical feed applications, as well as most applications with a corrosive media Constructed of corrosion-resistant PP glass fiber reinforced upper housing and PP, PVC or PVDF lower housing Protects pressure or vacuum instruments used on ultra-pure or highly corrosive fluid lines such as demineralized water, sulfuric acid, hydrochloric acid, and caustics PTFE coated EPDM diaphragms are standard on all assemblies 100% non-metallic wetted parts assures maximum chemical and temperature compatibility Seal type - Threaded with non-replaceable diaphragm Instruments - Type - Size - Minimum Pressure - Maximum Pressure Gauges - 2-1/2" to 6" - 0 psig to 30 psig - 0 psig to 160 psig Transducers - — - 0 psig to 30 psig - 0 psig to 160 psig Switches - — - 0 psig to 30 psig - 0 psig to 160 psig
