Hinged belt conveyor SF 811workpieceinclined
Add to favorites
Compare this product
Characteristics
- Technology
- hinged belt
- Transported product
- workpiece
- Other characteristics
- inclined
Description

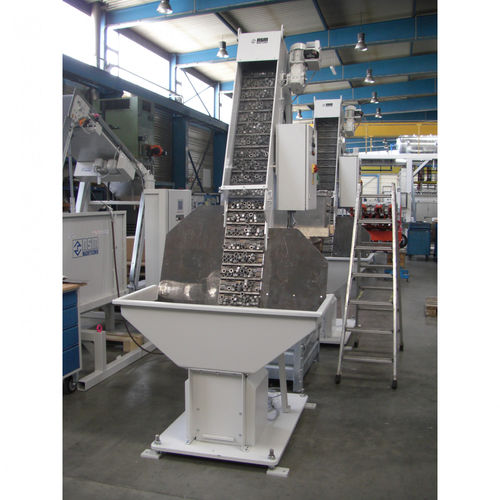

With our inclined conveyor type SF 811 you can transport disc-shaped, ring-shaped workpieces, but also short cylindrical bolts or square pins from our bunker via carriers to the desired height.
Both metallic and non-metallic workpieces can be conveyed.
Our inclined conveyors are available in 2 different nominal widths and 14 predefined center distances from 1524 - 3010 mm.
The carriers are available in bolted as well as welded design.
The drive is a Movimot worm gear motor with adjustable speed.
