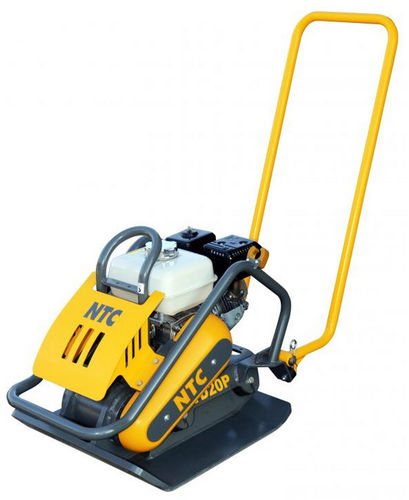

Forward travel vibratory plate VD 18 P

gasoline engine

Compared to our others series of forward vibratory plates, plates of PRACTIC series are fully customizable even at the motor level. Thanks to the exciter with frequency of 100 Hz these machines can be used for compaction of most types of material while maintaining excellent stability, controllability and work performance. Thanks to the frame construction a number of manipulation points are accessible from all sides of machine. Operational parameters Plate width 450 mm Centrifugal force 18 kN Frequency 100 Hz Max. speed 25 m/min Engine Maker and type Honda GX 160 Fuel Petrol Net power 3,6 kW Emission stage EU Stage V Operational fluids Water tank capacity 12 l Working dimensions Lenght 1110 mm Width 450 mm Height 1000 mm Transport dimensions Lenght 750 mm Width 450 mm Height 920 mm
