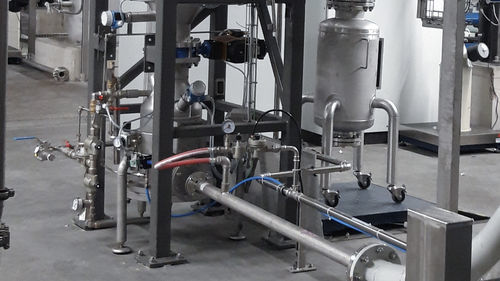

Low-pressure pneumatic conveying system Smartjet® M530

dense phasefor hopperfor granulates

Overview
Smartjet® M530 is a patented mini transporter designed for dense-phase pneumatic conveying of powder and granular products. Its compact dimensions allow installation in existing plants and in spaces where traditional conveying systems cannot be used. The unit features extremely low compressed air consumption and can be operated simply by connecting to a compressed air network.

Key innovations
The main innovation is the built-in fluidising disc housed in a removable insert, enabling fast and easy replacement. A removable anti-abrasion insert in the outlet duct toward the conveying line reduces wear and maintenance time.

Operating modes and compatibility
Smartjet® M530 is available in different versions and can be used for No Purge, high-pressure and low-pressure dense-phase conveying of moderately abrasive powder products. It can be combined with the Air Assist M366/M533 system and is also suitable for semi-dense phase and Purge conveying.

Advantages

• Fast fluidising disc replacement
• Removable anti-abrasion insert in outlet duct
• Reduced maintenance time and costs
• Compact, flexible and economical solution for tight integration

Applications
Particularly suitable for blender loading applications, under bag filters and under bag/big bag unloading systems. It can also be placed under silos and hoppers for products that require fluidisation while being conveyed, such as talc, gypsum, calcium carbonate, ground coffee, filter cake and various bulk raw materials.

Technical specifications

• Type: mini transporter for dense-phase pneumatic conveying
• Patented built-in fluidising disc in removable insert
• Removable anti-abrasion outlet insert
• Suitable conveying distance: up to 150 m
• Maximum flow rate: up to 5 m³/h
• Available flow range: from 100 l/h to 5000 l/h
• Compatible with No Purge, high-pressure and low-pressure dense-phase conveying; also suitable for semi-dense phase and Purge conveying
• Low compressed air consumption — direct connection to compressed air network possible
• Typical applications: blender loading, under bag filters, bag/big bag unloading, under silos and hoppers
