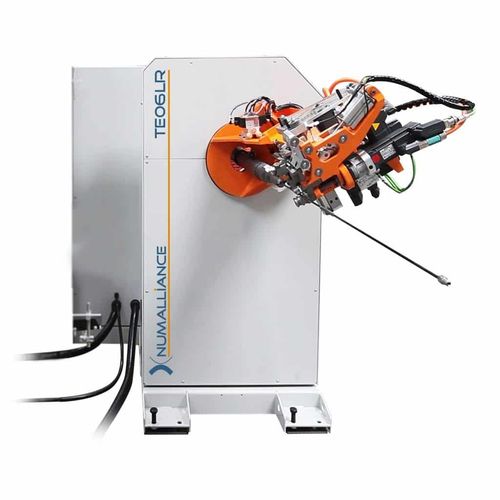

Hydraulic bending machine TE SmallelectrictubeCNC
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, electric
- Product handled
- tube
- Control
- CNC
- Other characteristics
- mandrel, 3D, without mandrel, draw
- Bending capacity
Min.: 3 mm
(0.12 in)Max.: 20 mm
(0.79 in)- Bending radius
25 mm, 50 mm, 62 mm
(0.98 in, 1.97 in, 2.44 in)- Bending length
Min.: 800 mm
(31 in)Max.: 30,000 mm
(1,181 in)
Description
Applications : Automotive : hydraulic and fluid transfer lines, H.V.A.C.C., ERG tubes
Air et Space : hydraulic piping circulation control wing, fuel, structure
Electric bending machines
Stackable multi-radii
Draw bending with and without mandrel
Patent pending on left and right bending
Orbital bending head
Easy integration in automated production cells
Possibility to combine bending with complementary operations
Man / Machine Interface
Industrial-Grade PC powered by proprietary software
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
