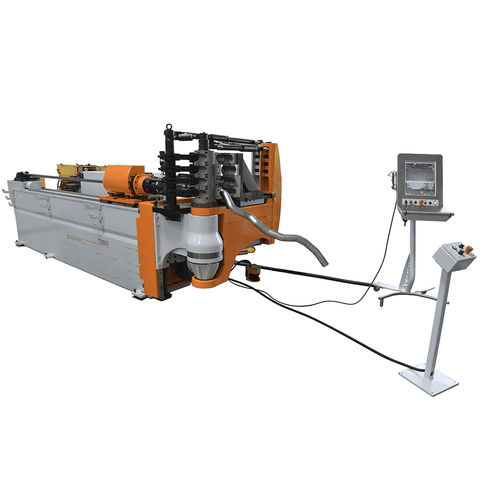

Electric bending machine TE LargetubeCNCmandrel
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Product handled
- tube
- Control
- CNC
- Other characteristics
- mandrel, without mandrel, draw
- Bending capacity
Min.: 20 mm
(0.79 in)Max.: 152 mm
(5.98 in)- Bending radius
280 mm, 300 mm, 500 mm
(11.02 in, 11.81 in, 19.69 in)- Bending length
3,000 mm
(118 in)
Description
Applications example : Automotive H.V.A.C.A., structure
Chassis parts, exhaust system
Hydroformed parts outlines
Electric bending machines
Stackable multi-radii
Draw bending with and without mandrel and roll bending
Fully automated systems for quick tooling change over
Curved bending
Easy integration in automated production cells
Possibility to combine bending with complementary operations
Man / Machine Interface
Industrial-Grade PC powered by proprietary software
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
VIDEO
