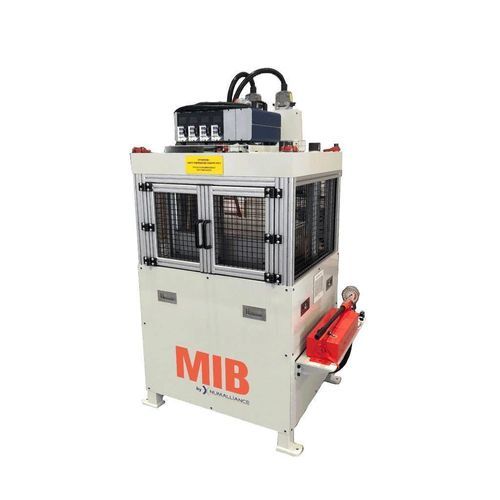

Manual press COHC serieshydraulicthermocompressioncolumn type
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, manual
- Function
- thermocompression
- Structure
- column type, with heating plates, hot-platen
- Control
- hand-operated
- Force
15 tf, 50 tf, 100 tf
- Opening
200 mm, 300 mm, 400 mm
(8 in, 12 in, 16 in)- Stroke
200 mm, 300 mm, 400 mm
(7.874 in, 11.811 in, 15.748 in)- Table width
300 mm, 500 mm, 600 mm
(12 in, 20 in, 24 in)- Table length
300 mm, 500 mm, 600 mm
(12 in, 20 in, 24 in)
Description
Product overview
Column hydraulic press manufactured by Numalliance for thermocompression and controlled pressing operations. Available in three capacities (COHC15, COHC50, COHC100). The moving part is the lower platen; steel heated platens provide controlled surface temperature up to 250°C.
Main features
Models and specifications
COHC15 | COHC50 | COHC100
Maximum force: 15 T | 50 T | 100 T
Table / platen dimensions: 300 x 300 mm | 500 x 500 mm | 600 x 600 mm
Stroke: 200 mm | 300 mm | 400 mm
Daylight: 200 mm | 300 mm | 400 mm
Heating power: 2 kWh | 8 kWh | 10 kWh
Applications
Designed for industrial thermocompression, bonding and forming operations that require controlled heating and hydraulic clamping. Suitable for small- to medium-series production, prototype assembly and laboratory process validation.
Technical specifications
Column hydraulic press manufactured by Numalliance for thermocompression and controlled pressing operations. Available in three capacities (COHC15, COHC50, COHC100). The moving part is the lower platen; steel heated platens provide controlled surface temperature up to 250°C.
Main features
- Press type: Column
- Moving part: Lower platen
- Heating: Steel heating platens
- Maximum platen temperature: 250°C
- Hydraulic clamping: Manual pump
Models and specifications
COHC15 | COHC50 | COHC100
Maximum force: 15 T | 50 T | 100 T
Table / platen dimensions: 300 x 300 mm | 500 x 500 mm | 600 x 600 mm
Stroke: 200 mm | 300 mm | 400 mm
Daylight: 200 mm | 300 mm | 400 mm
Heating power: 2 kWh | 8 kWh | 10 kWh
Applications
Designed for industrial thermocompression, bonding and forming operations that require controlled heating and hydraulic clamping. Suitable for small- to medium-series production, prototype assembly and laboratory process validation.
Technical specifications
- Models: COHC15, COHC50, COHC100
- Maximum force: 15 T / 50 T / 100 T
- Table / platen dimensions: 300 x 300 mm / 500 x 500 mm / 600 x 600 mm
- Stroke: 200 mm / 300 mm / 400 mm
- Daylight: 200 mm / 300 mm / 400 mm
- Heating power: 2 kWh / 8 kWh / 10 kWh
- Press type: Column
- Moving part: Lower platen
- Heating platens: Steel
- Maximum temperature: 250°C
- Hydraulic clamping: Manual pump
