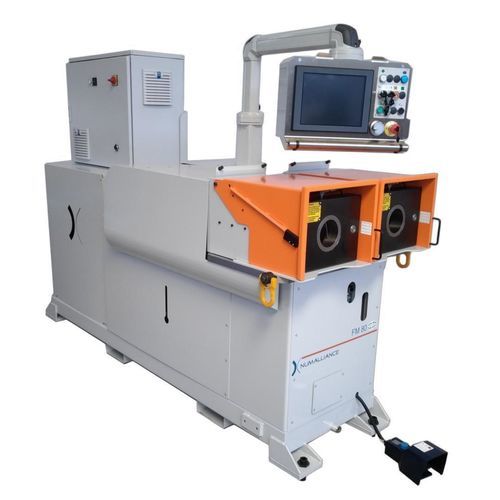

Twin-head forming machine FM80 ID

tubefor tubesfor stainless steel

Overview
FM80 ID/OD is a precision tube end forming machine for reduction, expansion and calibration of tube ends. Designed for integration into automated production cells with energy-optimized operation and configurable mounting options.

Main features

• 2 ID/OD forming heads
• 2 numerical (NC) axes per forming head
• Reduction, expansion and calibration operations
• Hydra-green energy-optimized technology
• Stand-by mode after 180 seconds
• Integrated air-cooling system
• Quick and simple setup
• Customizable clamping and working pressure
• Programmable operation and preloaded/custom sequences
• Floor mounting or casters for relocation
• Plug-and-play for automated cells
• Max. material thickness: 2 mm (stainless steel)

Man / Machine interface

• 12" touch screen with integrated keyboard
• Multi-language support
• Easy switch between metric and imperial systems
• Security management with status message display
• Auto-diagnostic (I/O and current with CNC axis display)
• Ethernet ready for local network and internet connectivity
• Remote support and maintenance via internet
• Foot pedal for cycle activation

Examples of parts
Typical parts produced on the FM80 ID/OD include various tube-end formed components used in assemblies and sub-assemblies; illustrations are available on the product page.

Technical specifications

• Model: FM80 ID/OD
• Forming heads: 2 (ID/OD)
• Axes: 2 numerical axes per head
• Operations: reduction, expansion, calibration
• Maximum material thickness: 2 mm (stainless steel)
• Cooling: integrated air-cooling
• Energy: Hydra-green energy optimization, stand-by after 180 s
• Interface: 12" touchscreen with integrated keyboard, multilingual
• Connectivity: Ethernet-ready, remote support capable
• Mounting: floor or casters
• Accessories: foot pedal for cycle start
