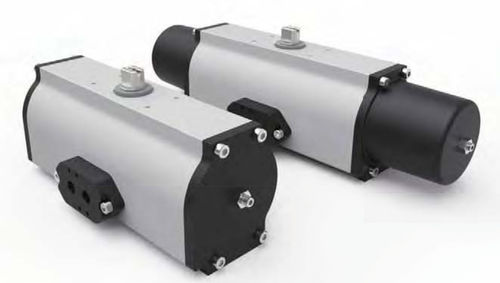

Pneumatic actuator NY serieslinearScotch yokedouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- linear
- Technology
- Scotch yoke
- Configuration
- double-acting
- Material
- aluminum, steel
- Norms
- ISO, VDI/VDE 3845
- Applications
- industrial
- Other characteristics
- standard, NAMUR
- Pressure
Max.: 10 bar
(145.04 psi)Min.: 2 bar
(29.01 psi)- Torque
Max.: 5,730 Nm
(4,226.231 ft.lb)Min.: 10 Nm
(7.376 ft.lb)- Operating Temperature
Max.: 150 °C
(302 °F)Min.: -40 °C
(-40 °F)
Description
Temperature Range:
Standard: -20°C to +80°C / -5°F to +175 °F
Low temp: -40°C to +60°C / -40 °F to +140 °F
High temp: 0°C to +150°C /+30°F to +300°F
NY Series S&Y Type Actuators Meet Standards:
Fitting accessories: VDI/VDE 3845(NAMUR)
Fitting to valve: Hole pattern, centering ring
ISO 5211, DIN 3337and NAMUR
NY Series S&Y Type Actuators are CE-marked:
According to PED.ATEX and SIL3
Pressure Ranges:
2-10 bar/30-145 psi
Extra Corrosion Protection:
Hard Anodized Actuators as standard
Option:
Epoxy finished
Offshore(IS012944-C5M) or other finish to meet
customer specifications.
Stainless screws and drive shaft
Operating Medium
Air, inert gases (non-dangerous fluids, group 2
according to directive PED 97/23/EC)
But also available for water or oil hydraulics:
2-10 bar/30-145 psi
