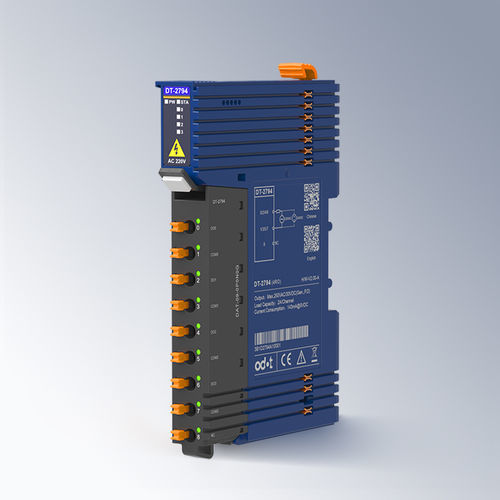

4 relay outputs output module DT-2794

4-channelDIN railnot specified

4 Channels relay output module 2A@250VAC/30VDC (Resistive load), 1A@250VAC/30VDC (Inductive load) Module Features - 4 Channels relay normally on output - 4 Channels LED indicators - Low on resistance (≤100mΩ) - With isolation between channels - Resistive and inductive loads can be connected - Module high speed redundant backplane bus with pluggable terminal blocks Technical Parameters General Parameters - Power Consumption: 143mA@5VDC - Field Power: 19.2~28.8VDC (Nominal: 24VDC) - Wirring Diameter: Min.0.2mm² (AWG24) Max.1.5mm² (AWG16) - Terminal Pluggable: Support - Backplane Bus: Double bus redundancy - Installation: 35mm DIN-Rail - Dimension: 119*14*80mm - Product Certification: CE Certification Output Parameter - Channel Number: 4 channels output - Indicator: 4 channels indicator - Output Type: Relay output - Load Capacity: Resistive load: 2A Inductive load: 1A Lighting load: 30W DC / 200W AC - Output Voltage: Max.250VAC/30VDC - Output Delay: OFF to ON: Max. 10ms ON to OFF: Max. 10ms - Switching Frequency: Resistive load: Max.1Hz Inductive load: Max.0.5Hz Lighting load: Max.0.5Hz - Module Fault Handling: Output fault value or hold last output value can be configured Environment parameters - Horizontal Installation Operating Temperature: -35℃~60℃ - Vertical Installation Operating Temperature: -35℃~50℃ - Storage Temperature: -40℃~85℃ - Environment Humidity: 5%~95%RH (No condensation) - Installation Altitude: <2000m - Pollution Degree: Ⅱ - Protection Grade: IP20 - Mechanical Properties: Comply with IEC60068-2-6, IEC6008-2-27 - Insulation Withstand: Comply with IEC61131-2 - EMC Performance: Comply with IEC61131-2, IEC61000-4 (ESD: Contact discharge ±8kV, Air discharge ±15kV, Performance level B) SURGE: Common mode ±3kV, Performance level B EFT: ±2kV, Performance level A - Product Name: DT-2794 Relay Output Module 4 Channels - Brand: ODOT Automation - Channels: 4 - Output Type: Relay - Load Capacity: 2A (resistive), 1A (inductive), 30W DC/200W AC (lighting) - Output Voltage: Max. 250VAC/30VDC - Installation: 35mm DIN-Rail - Dimensions: 119*14*80mm - Protection: IP20 - Certification: CE
